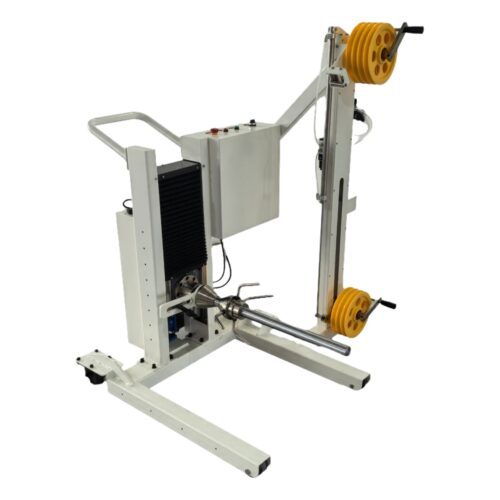

100kg floor type wire prefeeder
| Parameter | Specification |
|---|---|
| Model | SR-Q001 |
| Shaft hole diameter | / |
| Maximum loading weight | 100KG |
| Applicable reel | Plastic/wooden/iron reel |
| Voltage | AC220V |
| Weight and size | 120*80*105cm, 160kg |
| Diameter of cable reel | Max 630mm |
| Width of cable reel | Max 480mm |
| Feeding speed | 2m/s |
| Packing | Wooden case |
Features:
(1)This machine is an automatic wire feeding machine, which is used in conjunction with a fully automatic computer wire stripping machine. You only need to fix the whole coil of wire on the pay-off reel, start the motor when the wire needs to be fed, and it will Automatically synchronize with the cutting stripping machine.
(2)The diameter of the wire storage wheel is dia 100mm,can be customized, normal quantity 5pcs.
(3)The forward and reverse rotation control, the motor frequency conversion brake, the self-adaptive speed control slider position, the higher the position of the slider, the faster the motor speed. It can be connected with the stripping machine to stop together.
