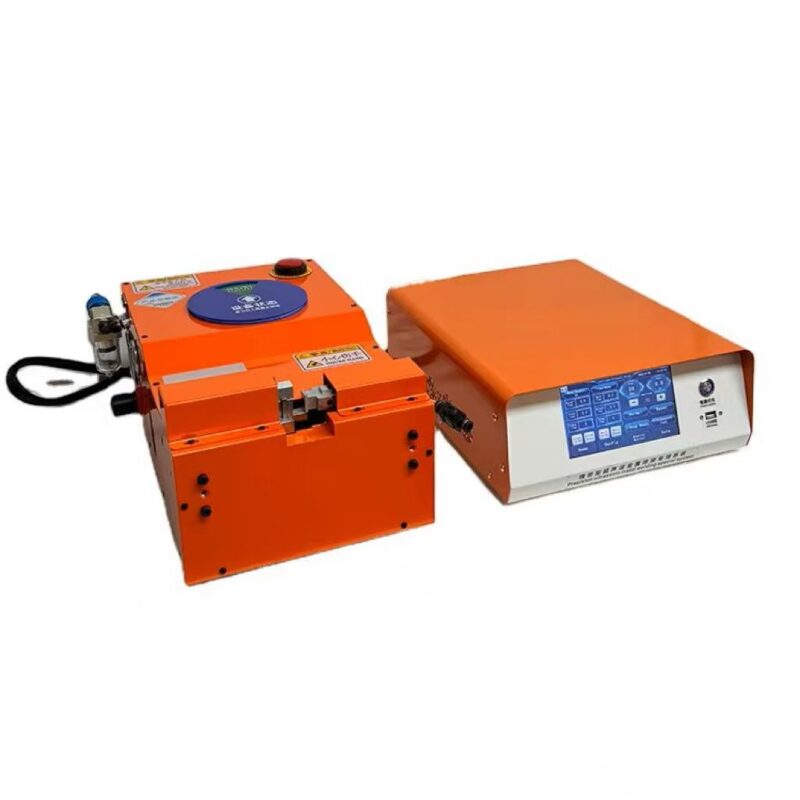

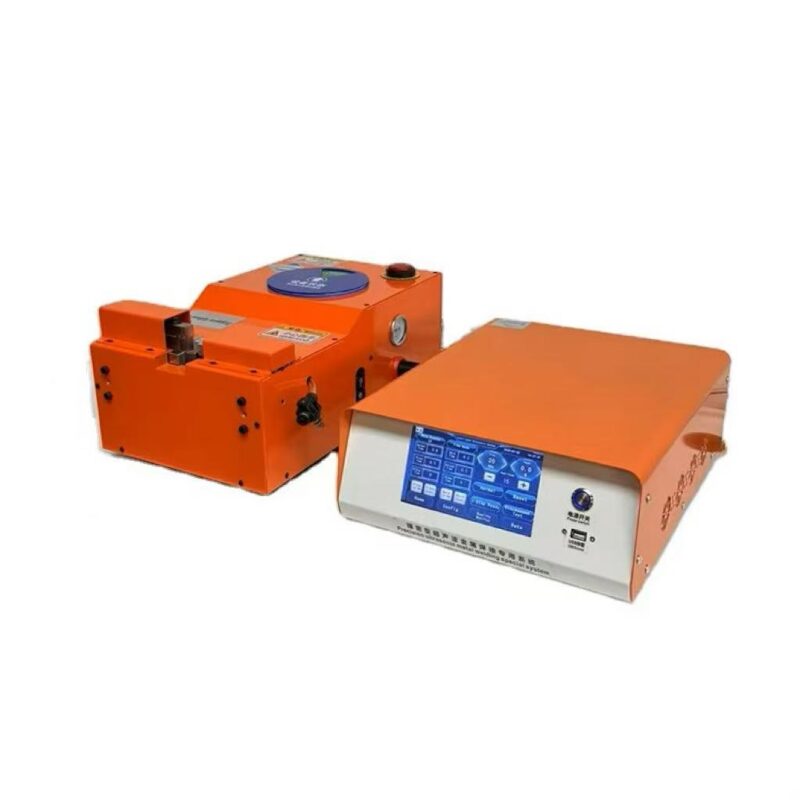

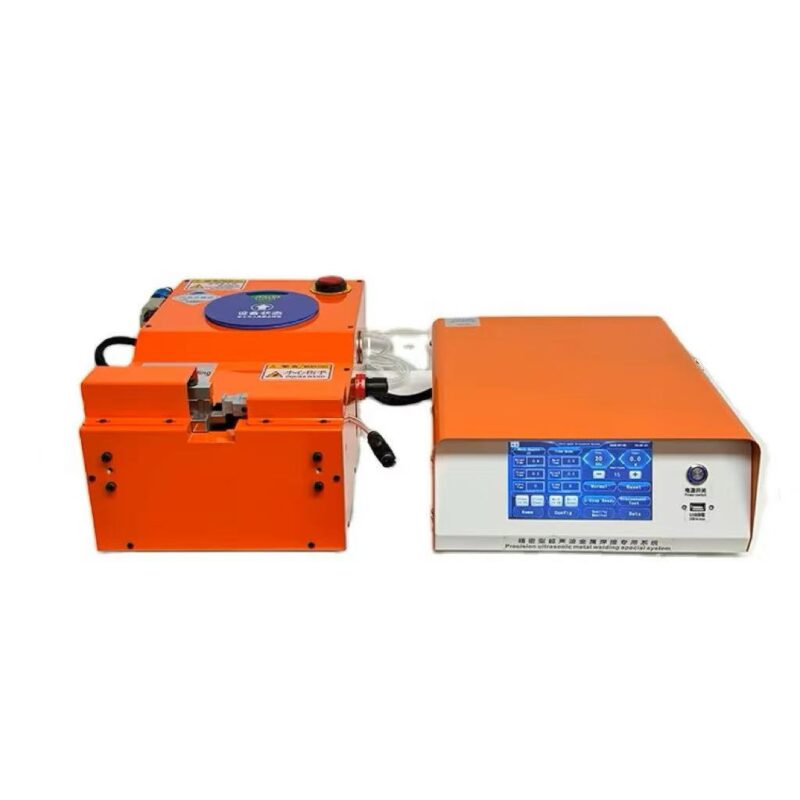

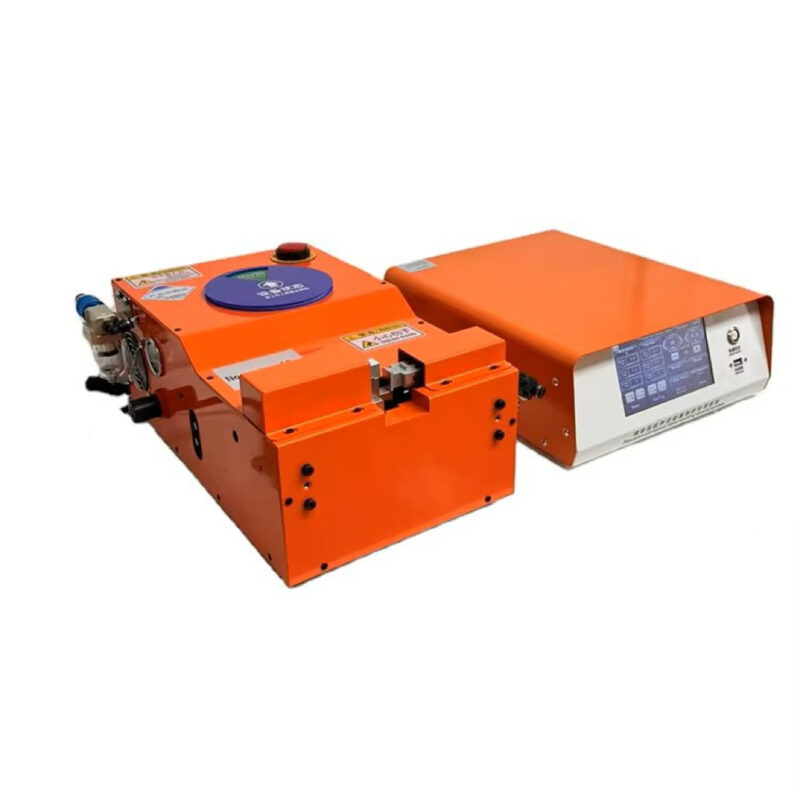

2000W Ultrasonic Wire Harness Welding Machine Ultrasonic Welding Machine for Copper Wire

2000W Ultrasonic Wire Harness Welding Machine Ultrasonic Welding Machine for Copper Wire

The ultrasonic wire welder’s main components include a transducer, die, and electrical box. It automatically tracks energy and features adjustable parameters such as time, weld duration, energy, air pressure, width, and amplitude. It can be applied to a variety of wire welding scenarios, providing stable, high-quality welds.

• Automatic Frequency Tracking: Utilizes digital frequency synthesis and digital phase-locked loop technology to automatically eliminate frequency drift caused by factors such as temperature, static load, and tool wear.
• Powerful Output: Uses an IGBT power module, providing an output power that is 1.5 times or more than traditional circuits.
• Stepless Amplitude Adjustment: Amplitude can be adjusted within the range of 10% to 100%, with fine-tuning capability to effectively prevent both large and small plastic parts from being pierced or scorched during welding.
• Intelligent Protection and Fault Alarm: Includes multiple protection functions such as high mold current, frequency offset, and excessive total output. When a fault occurs, the generator will immediately stop working and prompt the cause until the technician resolves the issue.
• Constant Amplitude Output: Intelligent closed-loop amplitude control technology ensures that the output amplitude is not affected by fluctuations in the input power supply voltage and load.
• Multiple Welding Modes: Supports the switching of various welding modes, resulting in higher welding accuracy, wider application range, and better welding effects.
