Countable Meter Winding and Binding Machine
Product details
| Function | Winding and Binding Wire |
| Model | SR-9035 |
| Warranty | 1 Year |
| Winding shape | circle / 8 shape |
| Winding OD | support customized (normally 6~20cm) |
| Winding Coil number | can be adjustable |
| Ribbon type | metal core with plastic skin |
| Binding wire Coil number | can be adjustable (suggest 3 circles) |
| Speed | 2-8 loops/s |
| Net Weight | 35KG |
More options:
| Model | SR-9028 | SR-9035 | SR-9050 | SR-9080 |
| Winding shape | O-shaped, 8-shaped | O-shaped, 8-shaped | O-shaped, 8-shaped | O-shaped, 8-shaped |
| Winding plate diameter | 180mm | 220mm | 220mm/300mm | 350mm |
| Binding diameter | 3-28mm | 5-35mm | 15-50mm | 40-80mm |
| Twist tie length | 50-130mm | 60-260mm | 90-300mm | Min. 210mm |
| Voltage | AC220V | AC220V | AC220V | AC220V |
| Equip with | 1 roll of twist tie | 1 roll of twist tie | 1 roll of twist tie | 1 roll of twist tie |
| Operation panel | Buttons and LCD, or Touch screen | Buttons and LCD, or Touch screen | Buttons and LCD, or Touch screen | Touch screen |
Features:
(1) Multi-function:
Winding machine with PLC program control, through the front panel text display can be quickly and easily set the production process parameters. You can set the number of windings, tie length, tie the number of coils, the target output, and production statistics can be automatically generated, the operation is simple and easy to understand.
(2)Widely used:

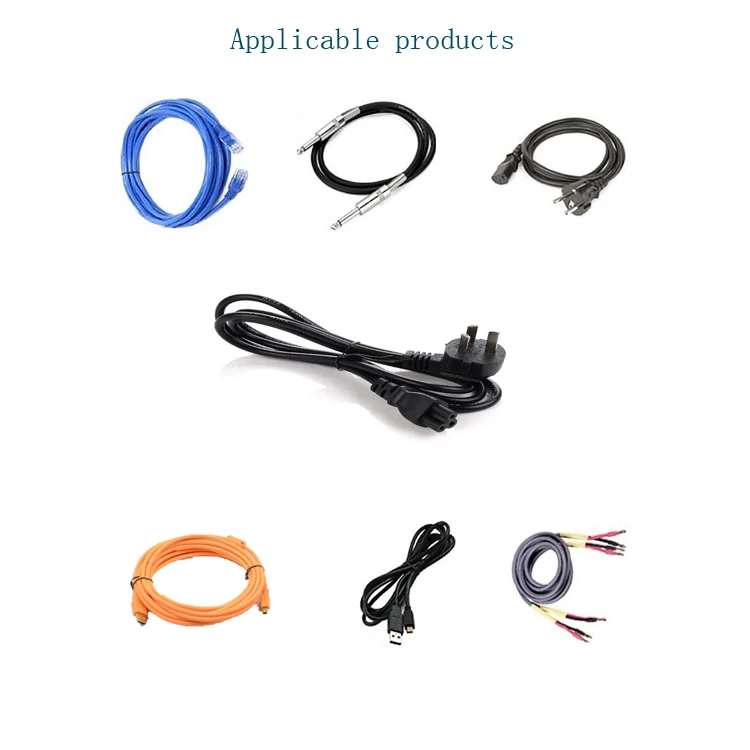

The device uses plastic coated core wire, suitable for a variety of AC / DC power cord, video signal lines, network cable, data cable, headphone cable and other types of transmission lines tied into a bunch of work.
(3) Easy to operate:

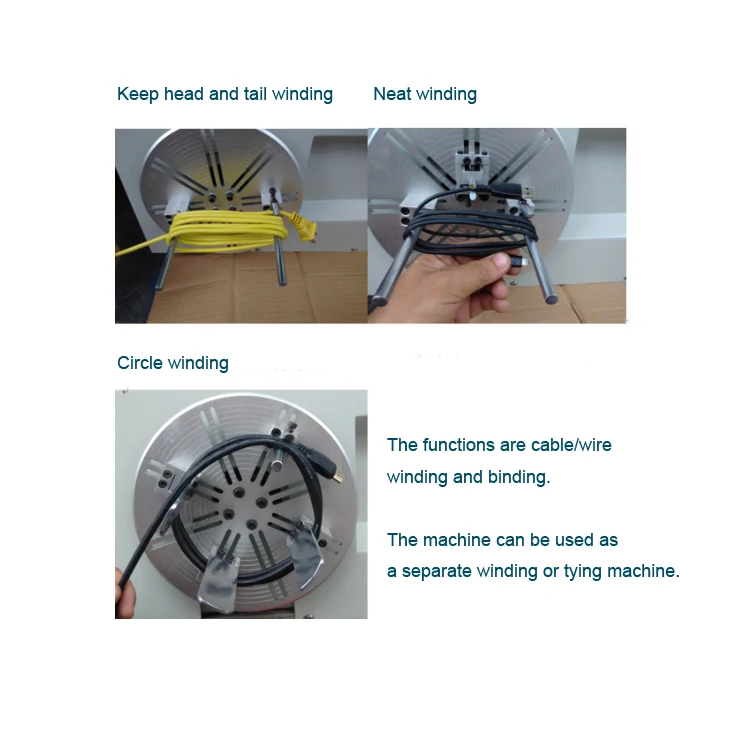

Staff first wire wound on the winding plate, and then remove the winding wire harness will be placed in the binding machine mouth, the machine automatically complete 1 second tie work.
