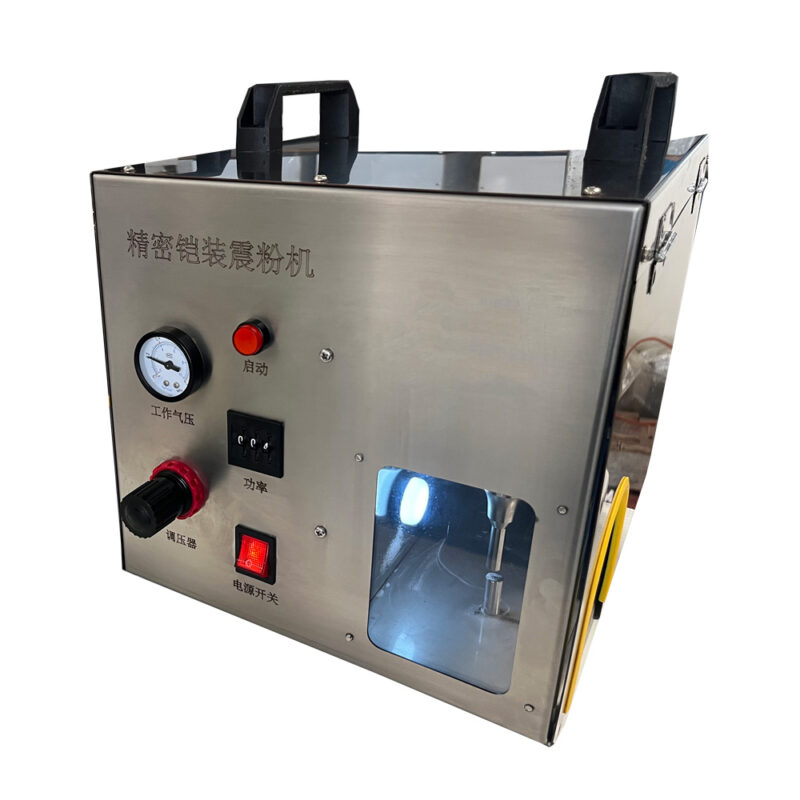

Armored Thermocouple Magnesium Oxide Powder Remover

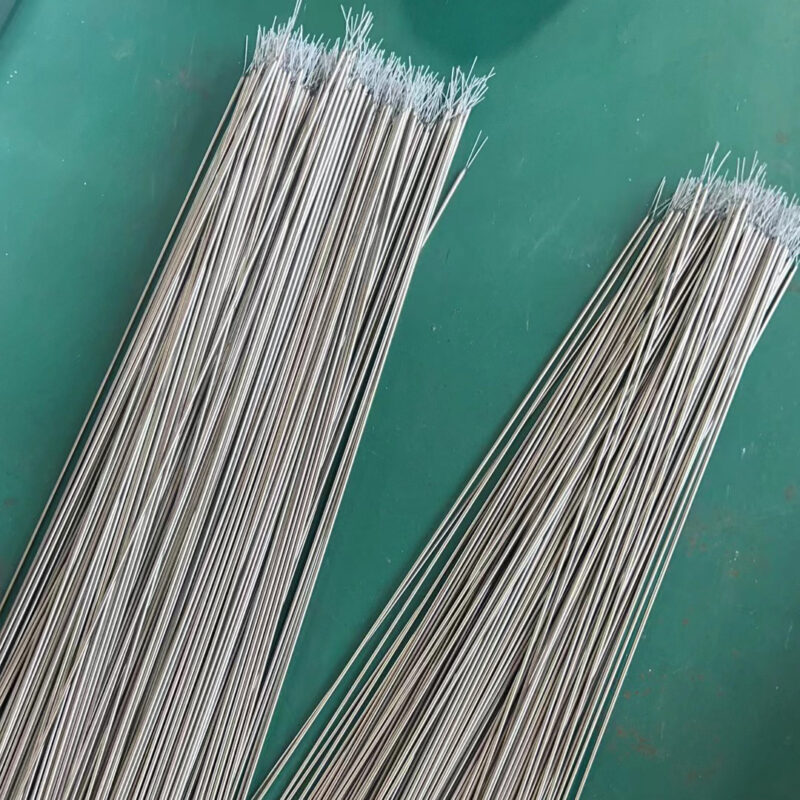

Dedicated Powder Removal & Core Exposure: Primarily functions to precisely vibrate and remove internal filler powder (like
magnesium oxide) from armored cables and tubes, ensuring clean exposure of internal core wires (peeling head to expose core).
magnesium oxide) from armored cables and tubes, ensuring clean exposure of internal core wires (peeling head to expose core).
Wide Diameter & Material Compatibility: Suitable for armored materials with diameters ranging from 0.8mm to 3mm, including stainless steel, copper, and aluminum tubes. This covers a common range for precision sensing and heating elements.
High Efficiency: Achieves a processing speed of 1 piece per second, making it highly efficient for high-volume production lines.
|
Weight (KG)
|
16
|
|
brand name
|
Sinrad
|
|
model number
|
SR-168S
|
|
Dimension(L*W*H)
|
30*45*32cm
|
|
Operating Mode
|
Semi-automatic
|
|
Function
|
Remove Armored Thermocouple Powder
|
|
Application
|
armored thermocouples, thermoresistors, and heating tubes
|
|
Applicable cable diameter
|
0.8-3mm(can be customized)
|
|
efficiency
|
1pcs/s
|
|
Power supply
|
220V 50HZ/60HZ
|
