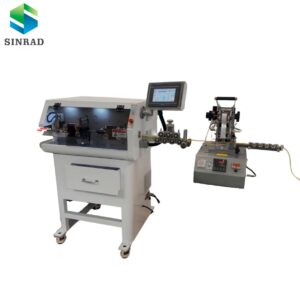

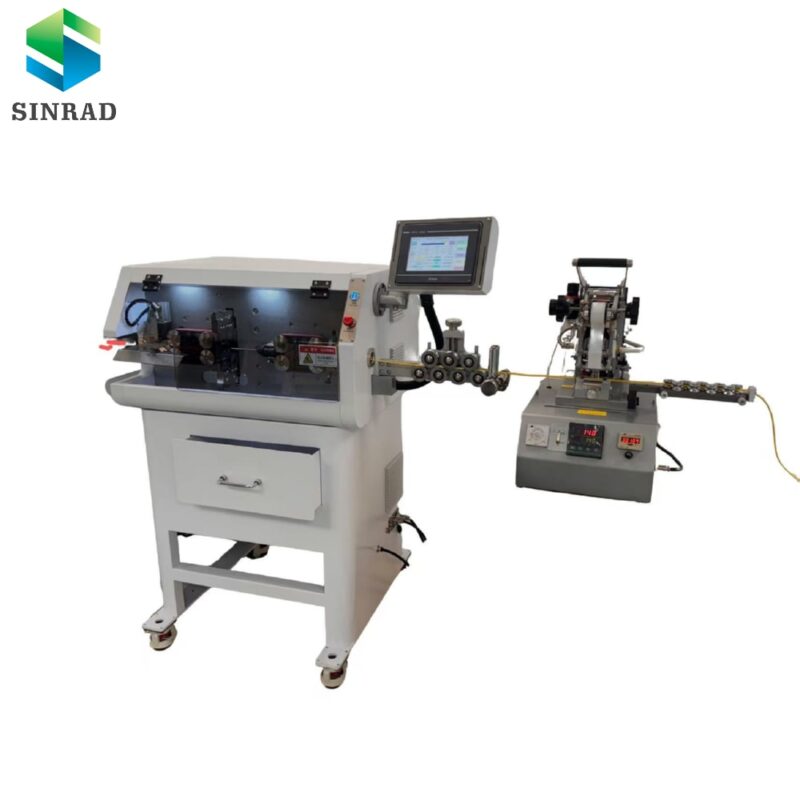

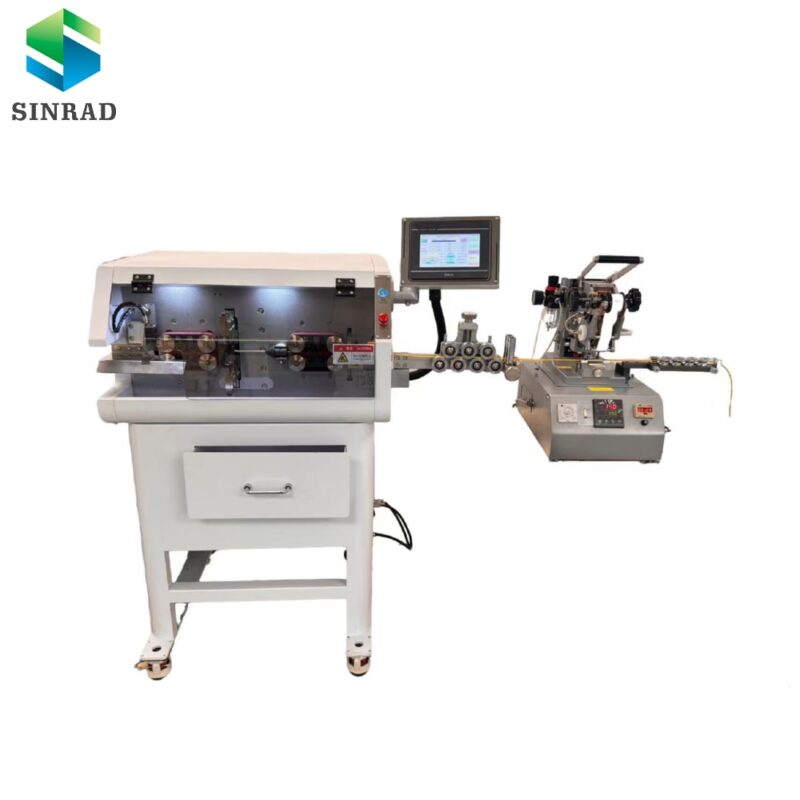

Our latest Integrated Wire Processing Solution combines high-speed automatic stripping with advanced hot stamping technology to provide a seamless “Print-and-Cut” workflow.

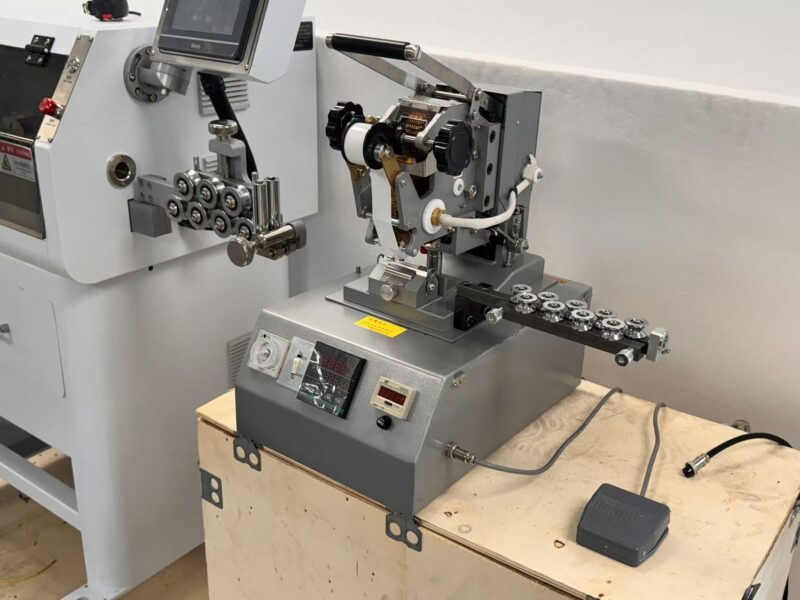

SR-BT07 Industrial Hot Stamping Machine
main feature
- Permanent, Industrial-Grade Marking: Unlike standard ink, our hot stamping uses heat-activated resin ribbons to create characters that are waterproof, oil-resistant, and heat-resistant. Perfect for harsh industrial environments.
- Versatile Substrate Support: One machine handles it all—PVC tubing, heat-shrink sleeves, nylon, PTFE, and insulated wires.
- Precision Engineering: Supports character sizes from to and can print on both flat and curved surfaces ( to ).
- Seamless Integration: The desktop hot stamping unit syncs perfectly with our automatic cutting and stripping machine, allowing for 7 to 30 digits of customizable coding per wire.
main parameter
- Advanced Heating Principle: Adopts electric heating core at the character wheel axis to heat the character wheel, transferring clear characters onto materials via inked resin ribbons.
- Superior Printing Quality: The printed characters are non-smudged, fade-resistant, water-resistant, oil-resistant and heat-resistant.
- Versatile Compatibility: Suitable for PVC hoses, heat shrinkable tubes, films, insulated wires, nylon and PTFE.
- Flexible Character Settings: Covers A-Z, 1-9, +, -, / and space; customizable for other languages or special characters.
- Multiple Font Sizes & Printing Specifications: Available in 2.4×2.4mm, 1.8×1.8mm, 1.2×1.2mm; supports flat and curved surface printing (R1-R14, customizable); character length 7-30 bits (customizable).
- Wide Compatibility with Equipment: Can be paired with automatic wire cutting and stripping machines for wire printing, and hose cutting machines for hose printing.
- Professional Labeling Tool: An advanced international wire wiring labeling tool and special equipment for various electromechanical products.

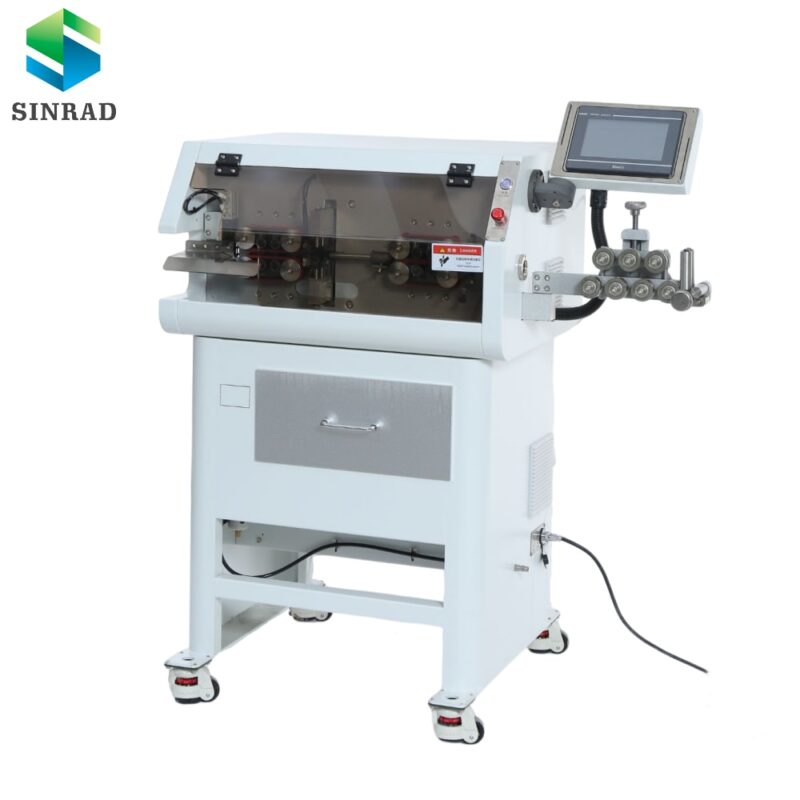

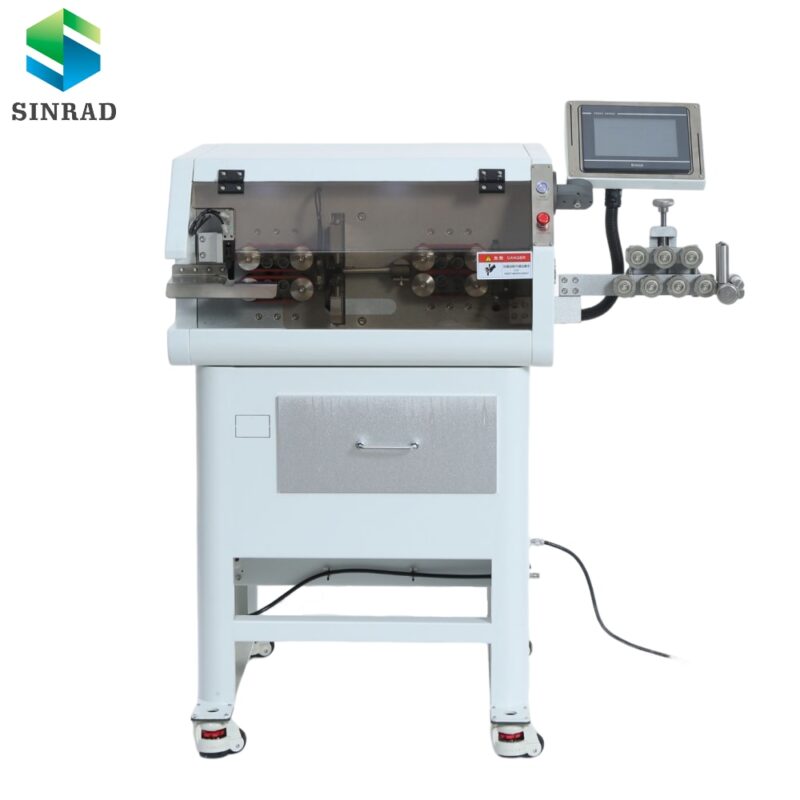

SR-8030HS Auto Cable Cutting Stripping Machine
| Parameters | Specification |
| Model | SR-8030HS(without workbench version: SR-8030H ) |
| Dimensions | 70*70*140cm |
| Weight | 162kg |
| Display mode | 7 inch English /Chinese interface LCD display |
| Power supply | AC110~220V/(50Hz/60Hz) |
| Stripping Outter length | head stripping:1-200mm, end stripping: 1-80mm |
| Stripping Inner core length | head stripping:1-50mm, end stripping: 1-50mm |
| Conductor type | cable, PVC, sheathed wire, multi-core sheathed wire … etc. |
| Cutting Length | 0.1mm–99999.9mm |
| Cutting tolerance | Within 0.002 x Lmm L=cutting length |
| Motor procision | Silent hybrid stepper motor, 0.1mm |
| Tool materials | import tungsten steel, quick-cutting steel |
| Remark function | auto feeding, auto cutting, timing start |
| Applicable cutting core | 1-30mm²(max 7 cores cable) |
| Max tube size | 16mm |
| Feeder model | Belt wire feeding, no embossing and scratches on the cable |
| Productivity (times / hour) | 1000pcs / h, according to the length and size of the wire |
| Drive mode | 16-wheel drive (silent hybrid stepping motor, servo tool holder) |
