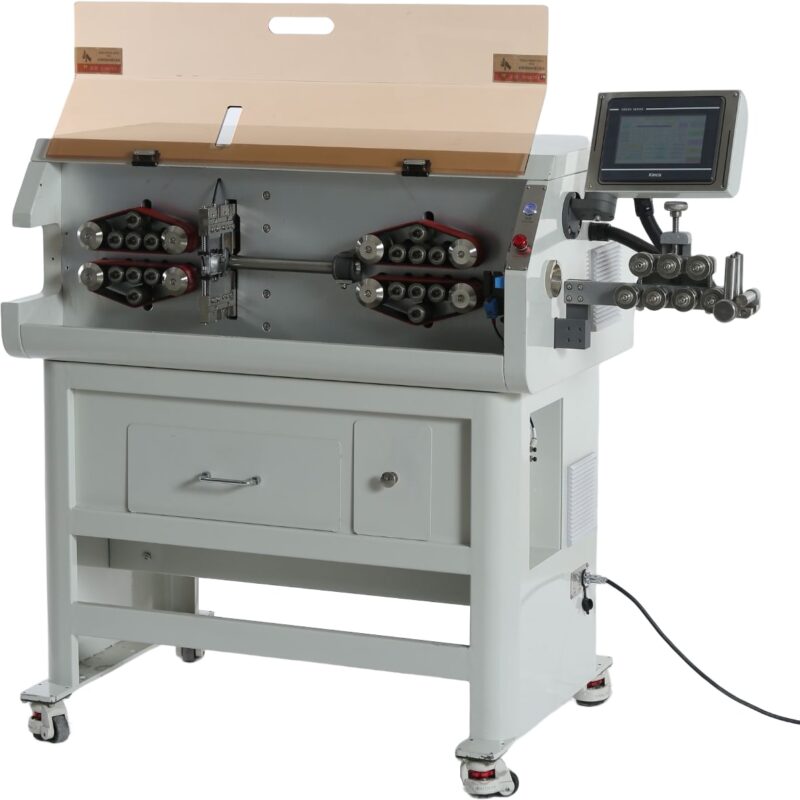

Special for Large Multi-core cable cutting and stripping(120mm² cable)
Features:
- Fully automatic cutting and stripping of wires and cables.
- MES system can be option, directly send the task to be processed to the machine to reduce misoperation.
- It can compatible with pay-off strand machine and take-up rack.
- inkjet printers can be option.
- store 100 program data, Easier, faster, and more comfortable setup.
Technical Data
| Parameter | Specification |
|---|---|
| Model | SR-120 |
| Display Method | 7-inch true color touch screen |
| Function | ① Fully automatic cutting and stripping of wires and cables. ② Multi-core sheathed wire stripping, multi-core sheathed wire stripping, completed at one time. |
| Wire Type | Cable wire, PVC, sheathed wire, multi-core sheathed wire, etc. |
| Stripping Range | 10-120 square meters |
| Cutting Length | 1mm-99999.99mm |
| Cutting Tolerance | Within 0.002*L (L=cutting length) |
| Stripping Length | Front stripping: 1-800mm End stripping: 1-400mm |
| Maximum Diameter of Catheter | Φ 25 |
| Tool Material | High quality imported high speed steel |
| Productivity (times/hour) | 1800pcs/h (sheathed wire 800pcs/h) depends on the length and size of the wire |
| Drive Mode | Silent hybrid stepper motor, servo tool holder |
| Line Delivery Method | Belt feeding, no embossing or scratches on the cables |
| Remark | Special cables can be customized, sample cables need to be sent for testing |
