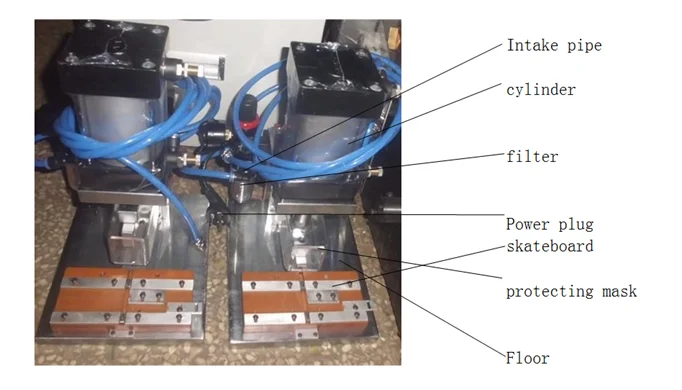

IDC Connector Crimping Machine
Model SR-50 Model:SR-63
Voltage AC220V Voltage AC220
Weight 14KG Weight 12KG
Appearance size 250X 200 X330mm
Number of crimping 4-30P one fixture / 30-50P one fixture, 64PIN one fixture
Features:
1. For 8P-50P IDC cable crimping and crimping machine instead of hand-pressing pliers, the crimping efficiency is high, the quality is stable, and the operation is simple.
2.Minimum gas consumption, low failure rate and easy maintenance.
3.With the use of bakelite base, the operation is simple, wear-resistant and high precision.
4.Suitable for IDC product crimping cable.
5.After the product is pushed in, it will be automatically punched, and the cylinder will be reset after completion. The operation is simple and easy to learn.
6.It can be pressed 300 ~ 600 times per hour according to the product type.
7. Use 6 ~ 8kg air pressure, 220V power supply.
8. The body is made of steel, which is stable and durable.
9. Distribution of a set of bakelite crimping adjustable blocks 8 ~ 40P (designed and manufactured according to customer products)
