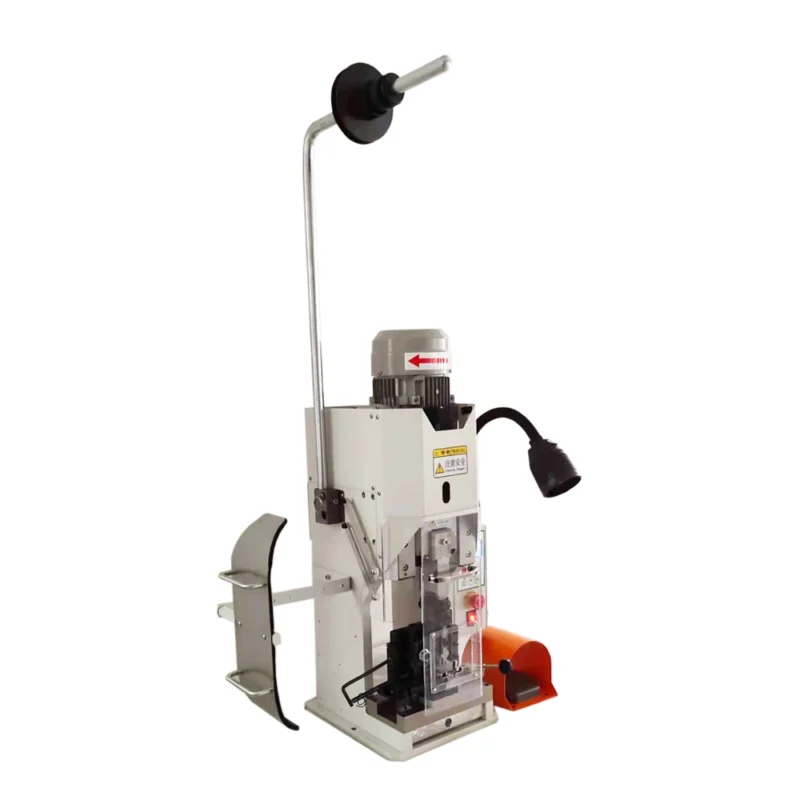

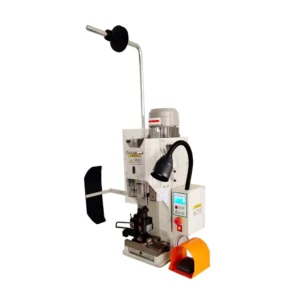

High Quality European Type Cable Terminal Crimping Pressing Machine
Features:
- Adopt ultra-quiet and energy-saving design.
- Equipped with safety cover.
- LCD screen, can set the crimping speed.
- 30mm/40mm stroke is optional.
- The slider and the slideway adopt needle roller cage bearings, which do not need to refuel and completely prevent jamming.
- The closed stroke is adjustable (10mm, the adjustment unit is 0.02mm).

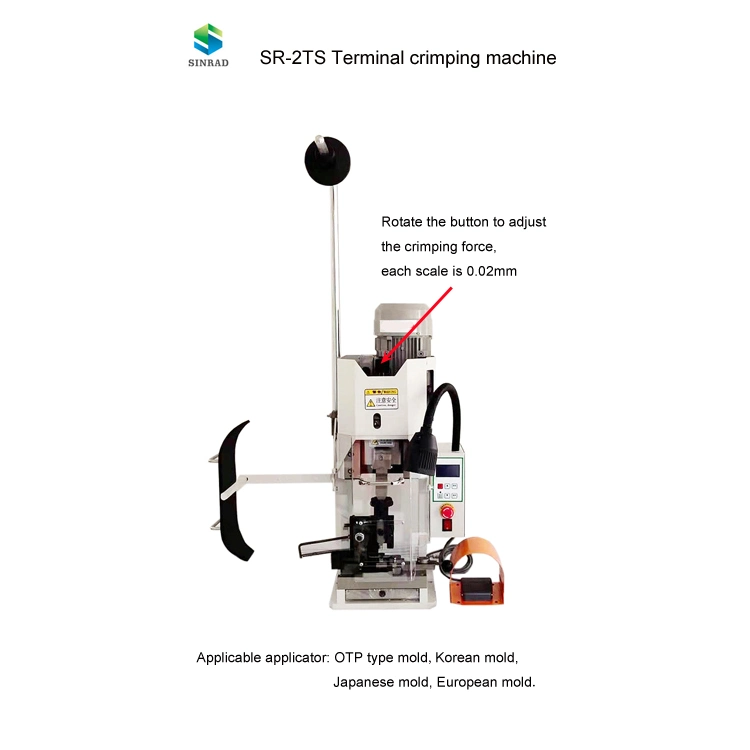

- The upper knob can adjust the crimping force, the operation is more convenient.
- Fast cassette mold base, easy to change mold, saving time.

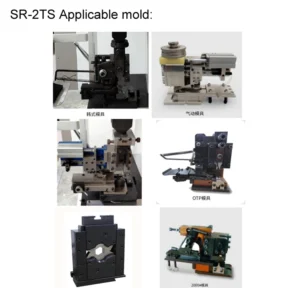

- The mold base is highly interchangeable, and can be installed with Japanese mold, Korean mold, European mold, Chinese OTP mold and other molds.
Technical Data
| Parameter | Specification |
|---|---|
| Model | SR-2TS |
| Power supply | AC 220V |
| Crimping force | 2T |
| Motor power | 750W |
| Stroke | 40mm/30mm |
| Machine Dimensions(L *W*H) | 340*300*736mm |
| Machine Weight | 80KG |
| Applicable mold | Chinese OTP mold and European mold |
| Applicable wire | Less than 3.3mm2 (12A WG). Depends on actual terminal. Bigger wire can customize bigger crimping force machine. |
| Crimping speed | Adjustable |
| Display | LCD, English display |
