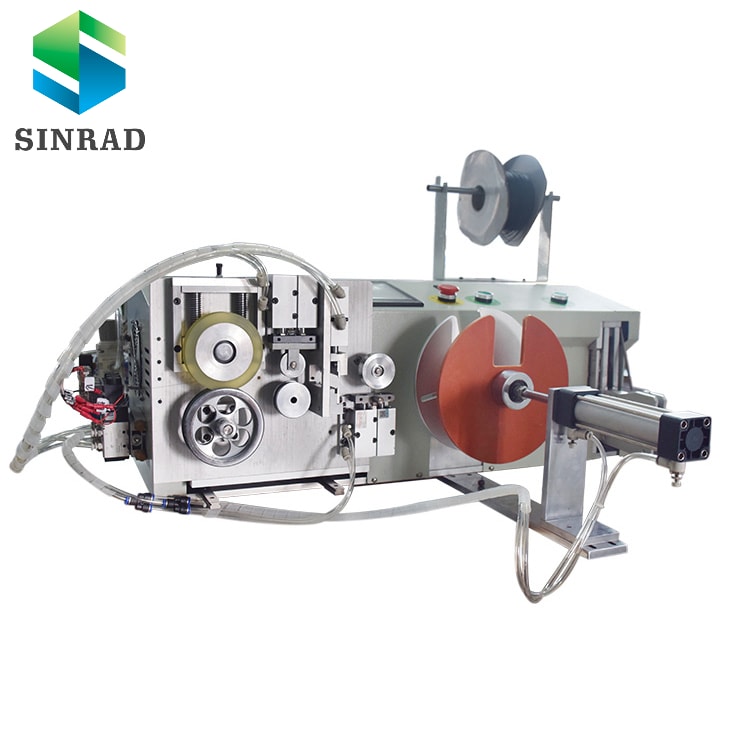

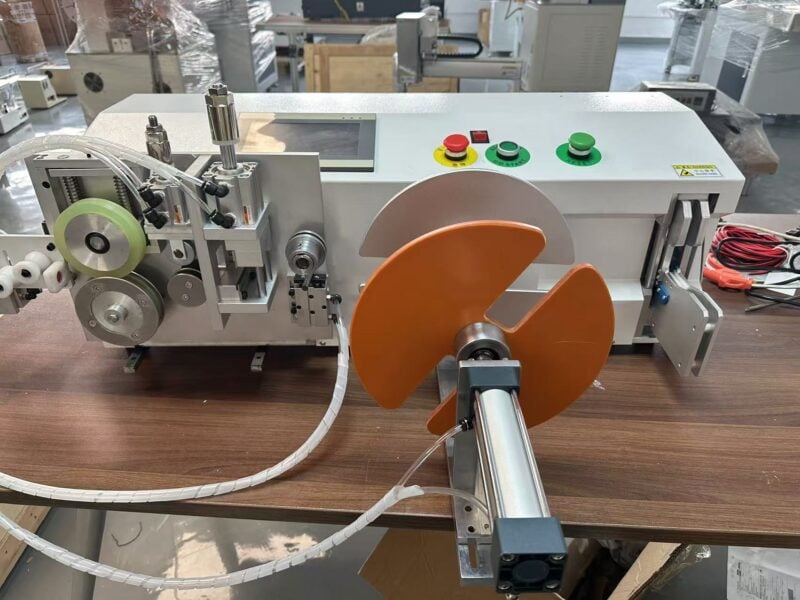

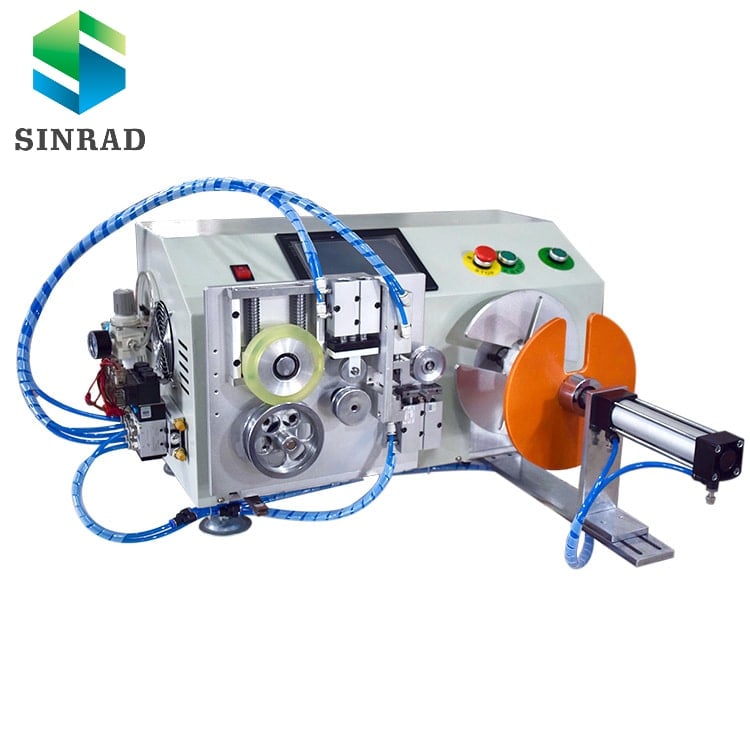

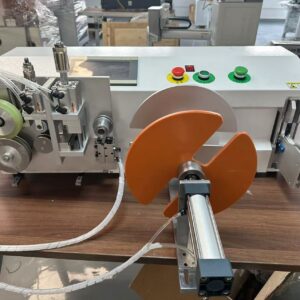

Automatic Desktop Cut-to-Length Cable Coiling and Tying Machine
|
Power
|
500W
|
|
usage
|
cut-to-length coiling and tying
|
|
place of origin
|
China
|
|
brand name
|
sinrad
|
|
model number
|
SR-D86
|
|
Dimension(L*W*H)
|
80*100*103cm
|
|
Operating Mode
|
Semi-automatic, Manual
|
|
Winding shape
|
cicle
|
|
Winding Coil inner diameter
|
50-200mm
|
|
winding speed
|
1-6 Turns/second
|
|
Applicable wire diameter
|
1-7mm
|
|
Voltage
|
AC220 50/60HZ
|
|
coiling weight
|
1.5Kg( can be customize)
|

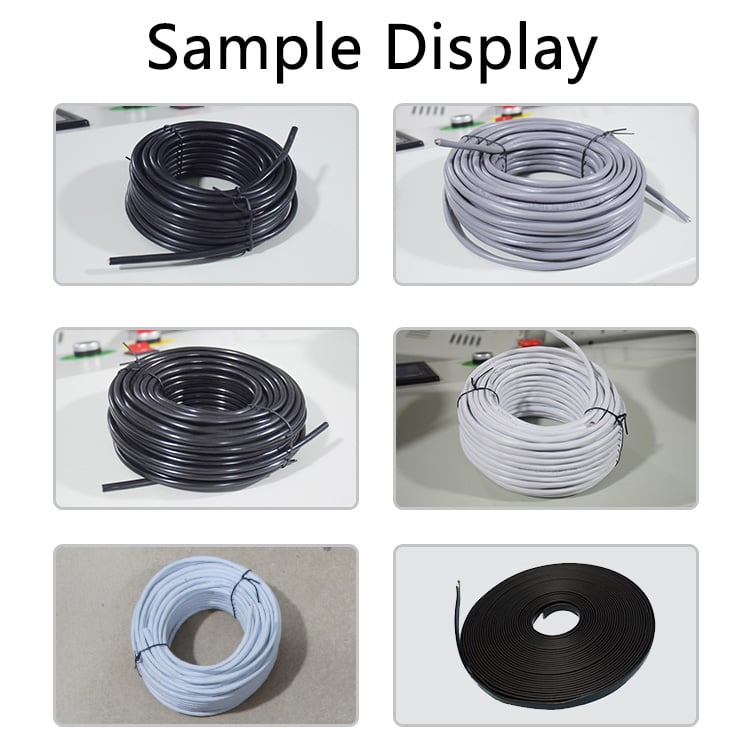

This machine is designed for winding and securing various types of wiring harnesses , including AC power cords, DC power cords,USB data cables, and video cables.
1. It features PLC and touchscreen control for precise meter counting length.
2. It can effortlessly switch between meter counting and non – counting modes.
3. The winding cycles are customizable, and the winding speed is adjustable to meet different production requirements.
4. The machine integrates functions like cutting to length, winding, and binding into one, effectively enhancing production efficiency.
5. Its operation is simple, and maintenance is convenient.
