Fully Automatic Double End Wire Cutting Stripping Crimping and Laser Tube Marking Machine
|
Weight (KG)
|
802
|
|
usage
|
cutting stripping wire,crimpping,inserting and print number tube
|
|
Operating Mode
|
Automatic
|
|
place of origin
|
China
|
|
brand name
|
SINRAD
|
|
model number
|
SR-SYSCT
|
|
Dimension(L*W*H)
|
80*180*180
|
|
Applicable wire
|
22 AWG to 14 AWG(0.3-2sqmm)
|
|
applicable terminal
|
reel ferrule,spade,fork,ring terminal, can customize for loose terminal
|
|
Cutting length
|
52-9999mm
|
|
Stripping length
|
0.5-8mm(customize)
|
|
Cutting tolerance
|
0.002*L
|
|
offline program saved
|
100 groups
|
|
Detection System
|
Low air pressure, wire presence, crimping and wire feeding abnormal
|
|
power supply
|
AC200V~242V, 50/60Hz
|
|
Feature
|
laser print,CCD Detection
|

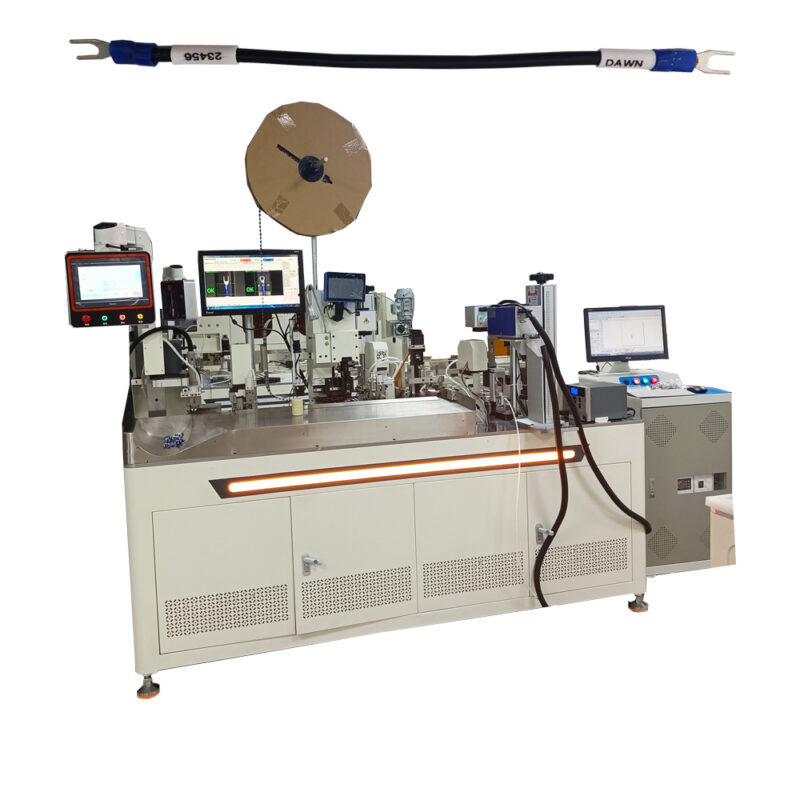

- This fully automatic double-head wire processing machine is designed for high-precision and efficient production of wire harnesses. It integrates wire cutting, single-end and double-end stripping, crimping, and laser printing with heat-shrinkable marker tubes.

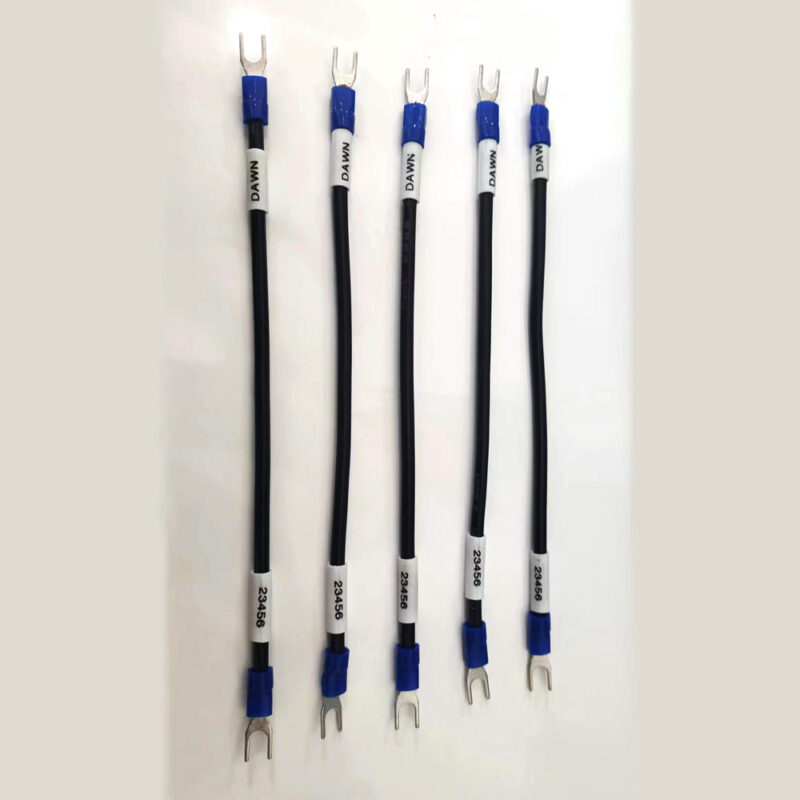

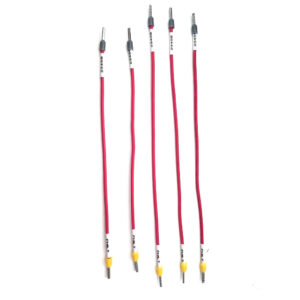

- The system supports various reel terminal types such as Y-type, O-type, and ferrule terminals. and we also supply the similar machine for loose Y-type, O-type, and ferrule terminals.
- Equipped with servo motors, synchronous wire feeding, and branded components, it ensures stable performance, accurate stripping depth, and reliable crimping quality.
-
The machine is widely used in automotive wiring harness, industrial control, household appliances, and electronic industries.
