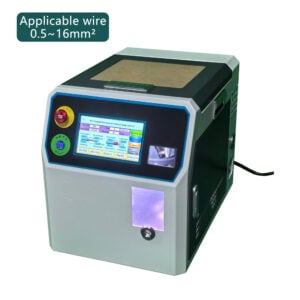

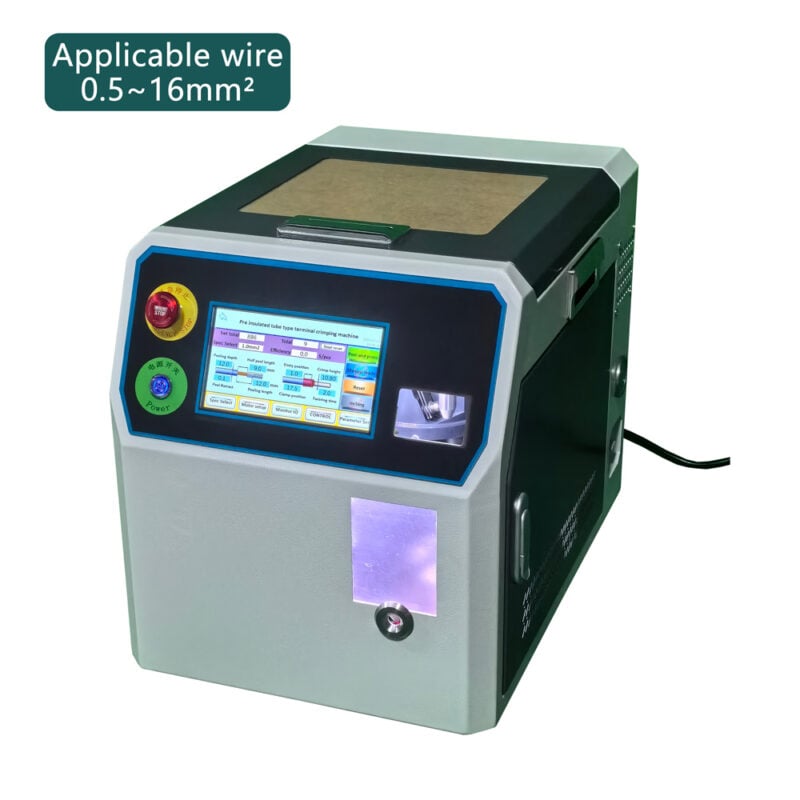

0.5-16 mm² Insulated cord end ferrule crimping machine with stripping and twisting
- Applicable for 0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16 mm² wire.
- Stripping, crimping, twisting finish in one machine.
- Vibrating plate feeding, and only simple adjustments are needed to be compatible with 10 types of ferrules.
- One key to call saved offline programs.
- Operate mode : wire Induction automatic triggering, Manual tap screen, foot switch.
- Regular square crimping, servo motor crimping, and crimping shape can be customized.
|
Power
|
1500
|
|
Weight (KG)
|
62
|
|
usage
|
Crimping,Stripping, twisting
|
|
place of origin
|
China
|
|
brand name
|
Sinrad
|
|
model number
|
SR-0516A
|
|
Dimension(L*W*H)
|
36*52*43
|
|
Operating Mode
|
Semi-automatic
|
|
Warranty
|
1 year
|
|
Wire available
|
0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16 mm² easy quick change over
|
|
Stripping length
|
6-30mm
|
|
air source
|
0.5-0.7MPa
|
|
function
|
stripping crimping and twisting
|
|
suitable terminal
|
Insulated cord end terminal
|
|
applicable ferrule
|
Insulated length within 11mm, conductor length within 20mm
|
|
feature
|
support 9 types size ferrule, only need make a simple adjustment
|
|
work model
|
wire induction operation and manual trigger or foot switch
|
|
Power supply:
|
220V 50/60Hz( 110v optional )
|
