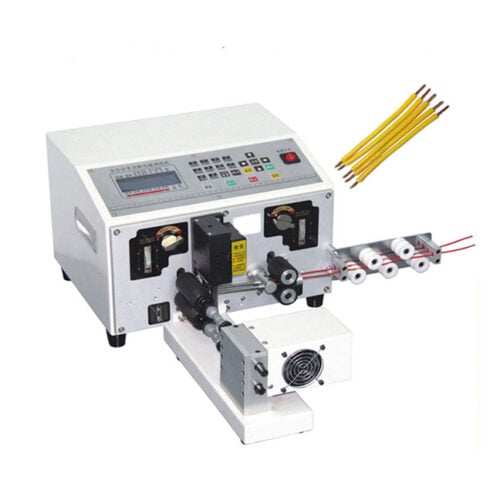

This machine designed for 2 to 5 core cable automatically cutting, stripping. Stripping outer sheath and inner skin at one time.
Features:
- Automatic machine for electronic wire, silicon wire, ptfe wire, glass fiber wire, isolation wire, etc.
- Automatic cutting and stripping multi-core cable. Single wire also is available.
- At the same time stripping outer sheath and inner insulation, greatly improve the output, can instantly transform the size and length of wire.
- Equipped with different diameter of guide tube to accurately processing different OD cable.
- Controlled by touch screen, easy operation.
Technical Data
| Parameter | Specification |
|---|---|
| Model | SR-905 |
| Applicable cable diameter | 1-7mm |
| Applicable cable | Single core wire, 2-core 3-core 4-core cable |
| Stripping length outer | Head 0.1-250mm, rear 0.1-70mm |
| Stripping length inner | Head 0.1-15mm, rear 0.1-15mm |
| Cutting length | 0.1-99999.9mm |
| Voltage and power | 700W, AC220V 50/60HZ |
| Control mode | Touch screen |
| Applicable core wires | 2-core, 3-core, 4-core, 5-core |
| Stripping accuracy | Silent hybrid stepping motor 0.01mm |
| Machine Dimensions (L *W*H) | 470*450*350mm |
| Machine Weight | 37kg |
