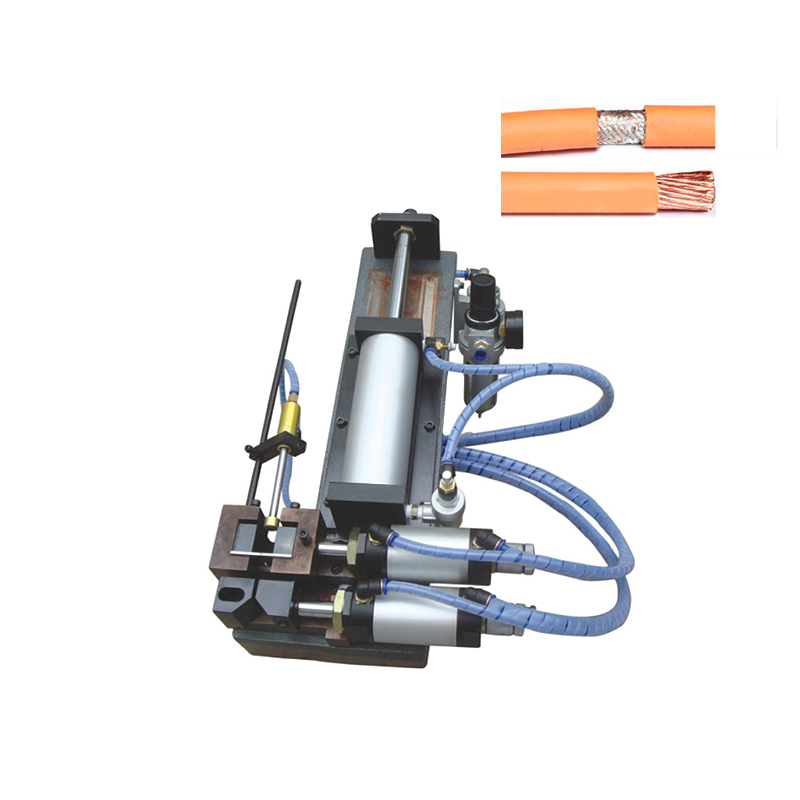

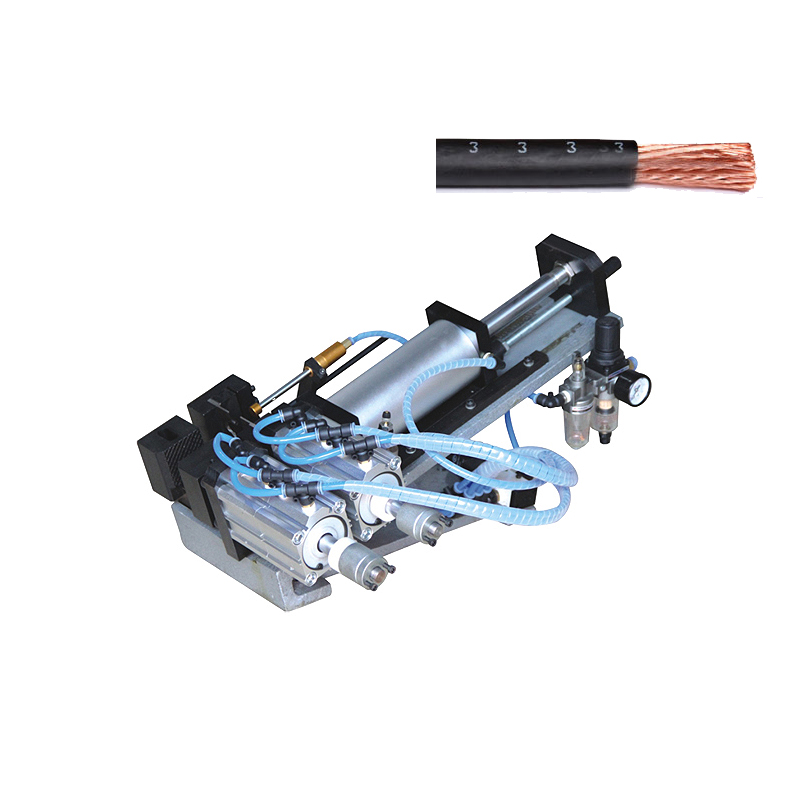

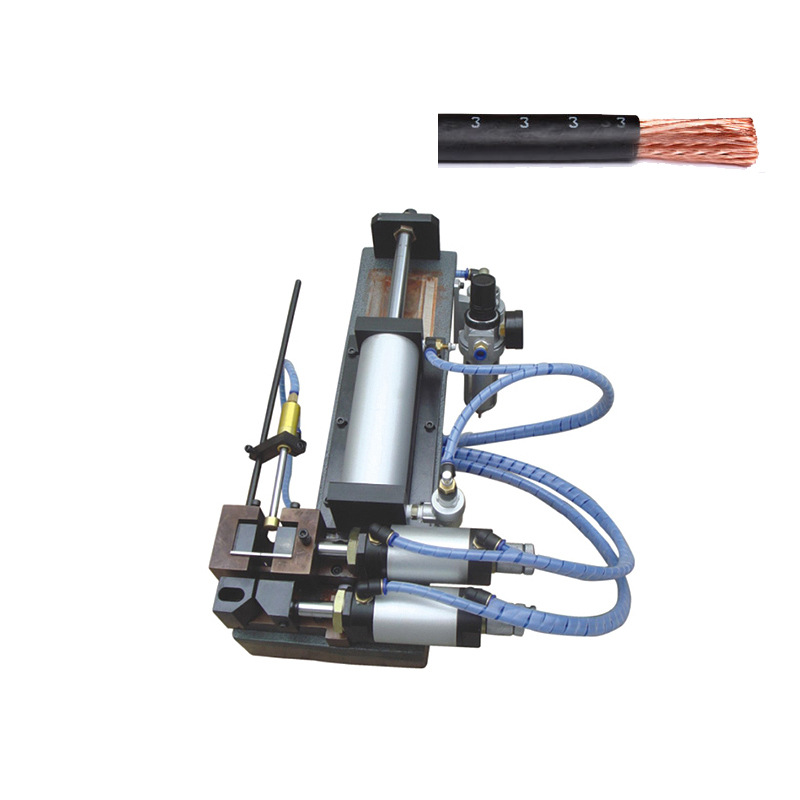

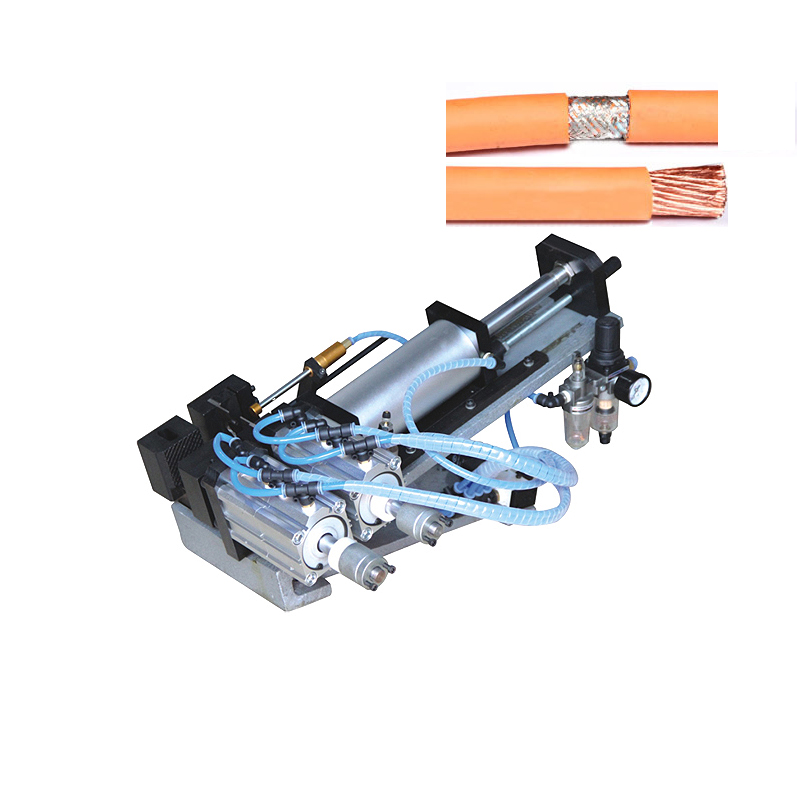

Pneumatic outer jacket stripping machine for big cable OD up to 30mm
This pneumatic stripping machine designed for stripping cable/wire with simple operation and high precision.

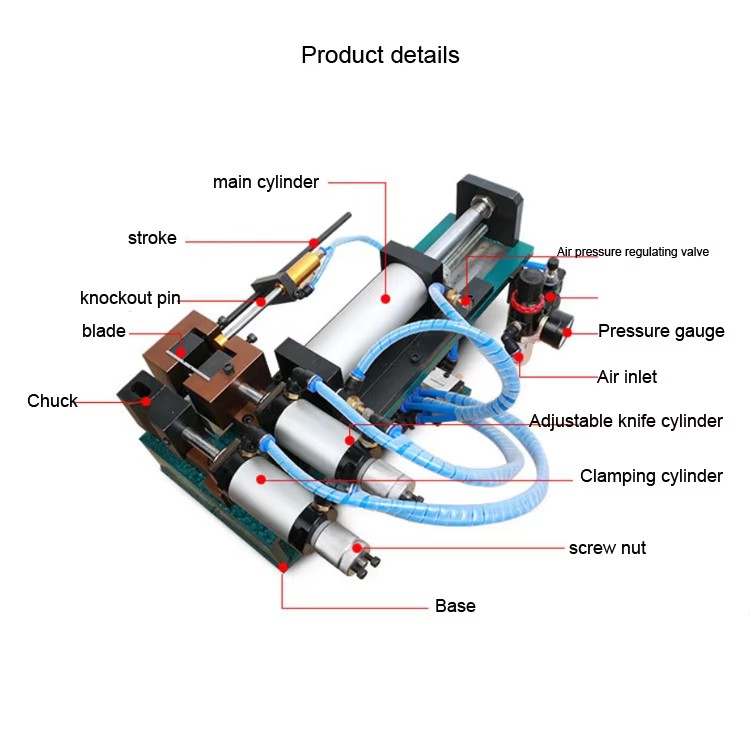

Product details
| Model | Stripping length | Wire OD | Air pressure | Voltage | Weight | Size(LWH) |
|---|---|---|---|---|---|---|
| SR-305 | max. 50mm | max. 5mm | 3-7kg | AC 110/220V | 17kg | 360x370x235mm |
| SR-310 | 100mm | 15mm | 3-7kg | AC 110/220V | 24kg | 470x420x270mm |
| SR-315 | 150mm | 20mm | 3-7kg | AC 110/220V | 30kg | 580x400x310mm |
| SR-330 | 300mm | 20mm | 3-7kg | AC 110/220V | 60kg | 930x450x415mm |
| SR-416 | 150mm | 30mm | 3-7kg | AC 110/220V | 55kg | 690x460x345mm |
Features and advantages:
- Pneumatic control, light and agile, easy operation.
- Unique sliding seat, smooth reciprocating stroke, precise cutting and peeling.
- Adjustable results, adjusted according to wire thickness.

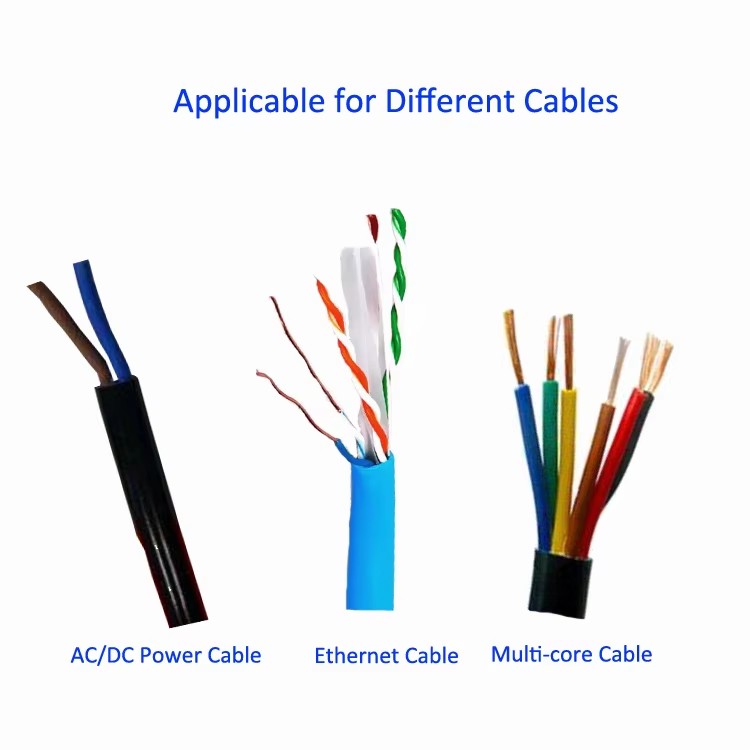

- Applicable to AC / DC power cord, computer cord, electronic wire, multi-core cable, special wire.
