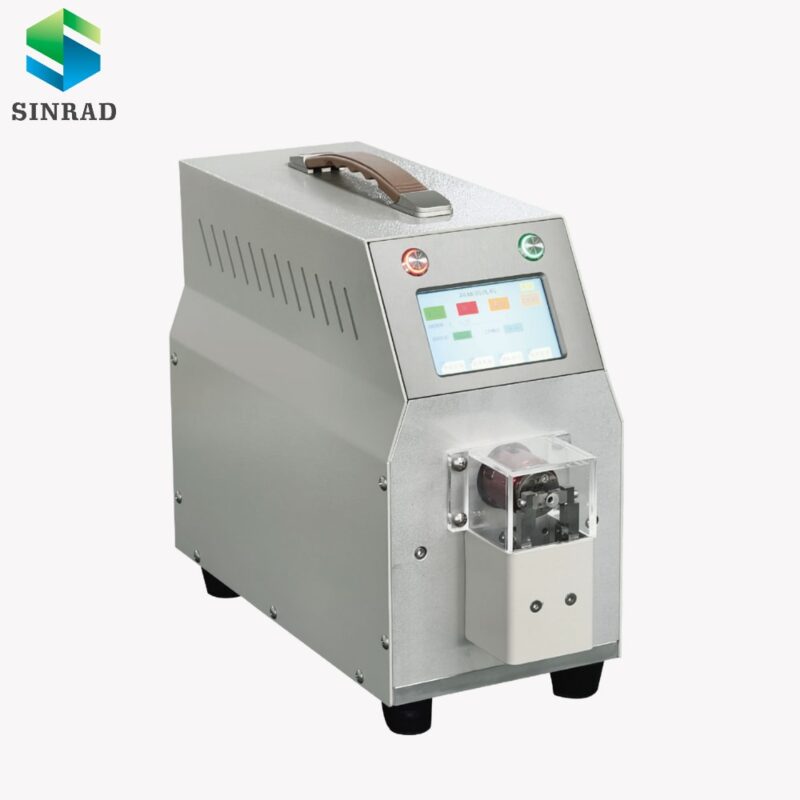

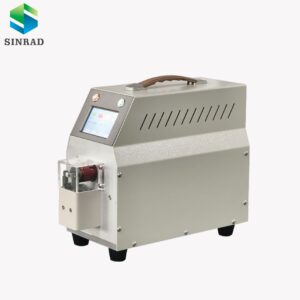

Precision Coaxial Stripping Machine SR-1208 Main Feature

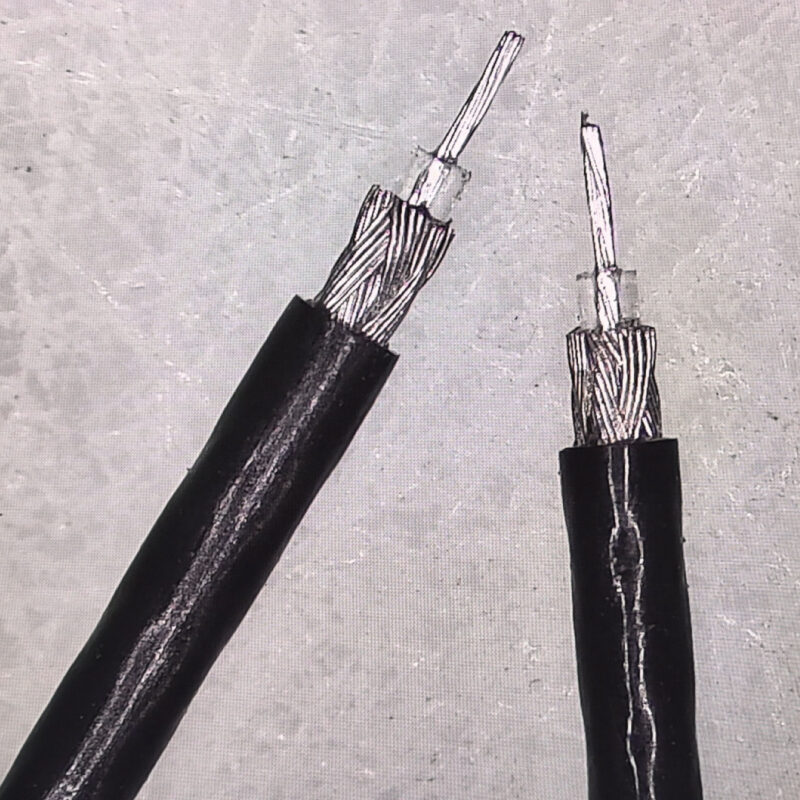

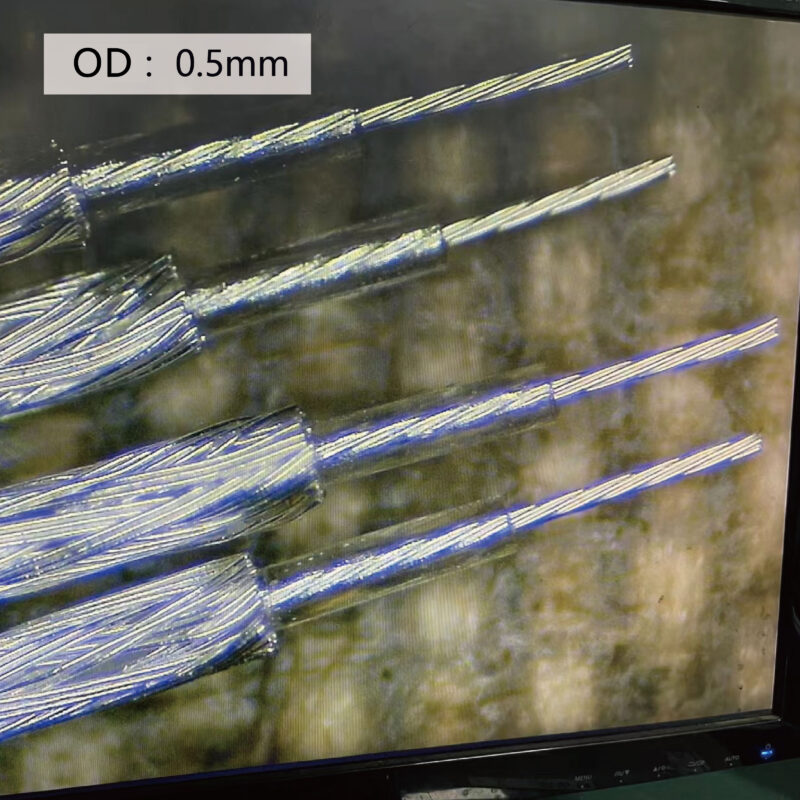

High Precision Stripping: Delivers neat and precise stripping without damaging the conductor, ensuring high-quality results.
Multi-Layer Capability: Capable of stripping up to 9 layers, making it versatile for complex wire structures.
User-Friendly Interface: Features a human-machine interface with a touch screen (Chinese and English LCD display), making operation simple and intuitive.
Smart Programming & Storage: Can store up to 99 sets of processing parameters, allowing for quick recall and efficient production changes.

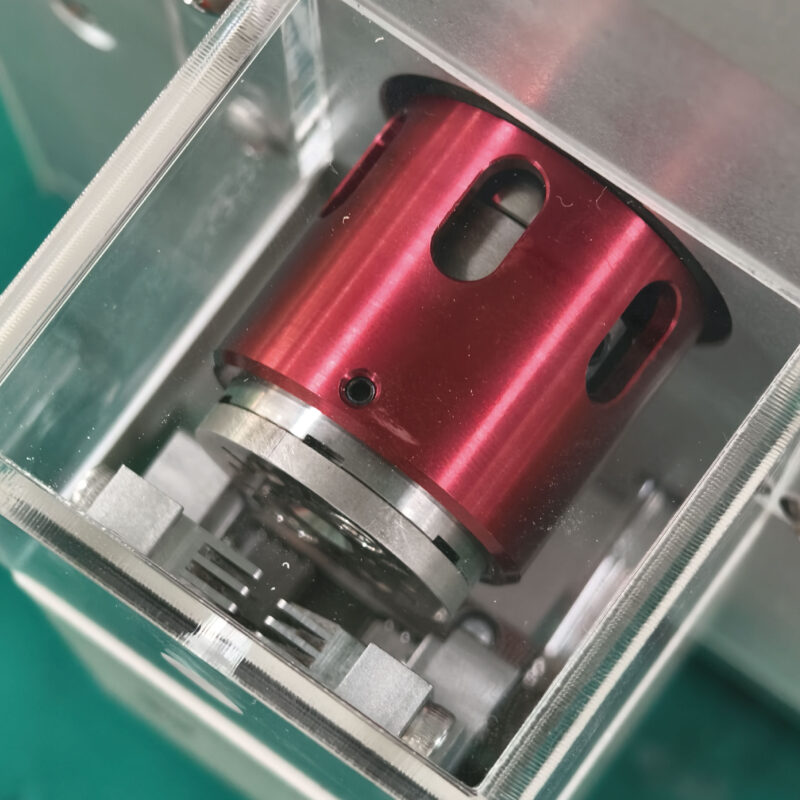

Durable Blade System: Equipped with a rotary cutter head, three high-quality imported tungsten steel rotating blades, and three wire guard blades. This design enhances stripping stability and extends blade lifespan.
Automated Waste Management: Includes an automatic suction system for collecting wire insulation waste, ensuring a clean working environment.
Compact & Flexible: Its small size (310x160x280mm, 18KG) allows for easy integration into existing setups or use with automatic production lines.
Efficient Performance: Achieves production efficiency of 750-1150 Pcs/h (depending on wire type).
|
Power
|
300
|
|
Weight (KG)
|
18
|
|
usage
|
Multifunctional
|
|
place of origin
|
China
|
|
brand name
|
Sinrad
|
|
model number
|
SR-1208
|
|
Dimension(L*W*H)
|
310X160X280mm
|
|
Operating Mode
|
Semi-automatic
|
|
function
|
Cutting and Stripping Cable
|
|
cutting diameter range
|
0.4-1.6mm
|
|
stripping length
|
0.1-20mm
|
|
Cutting Depth setting unit
|
0.01mm
|
|
Stripping Depth setting unit
|
0.01mm
|
|
Work model
|
manual foot switch or connected Dynamic automatic
|
|
Max. Stripping Layer
|
9 layers
|
|
program saved
|
99 kinds of processing parameter data
|
|
blade
|
2 PCS V shape Imported tungsten steel blade
|
