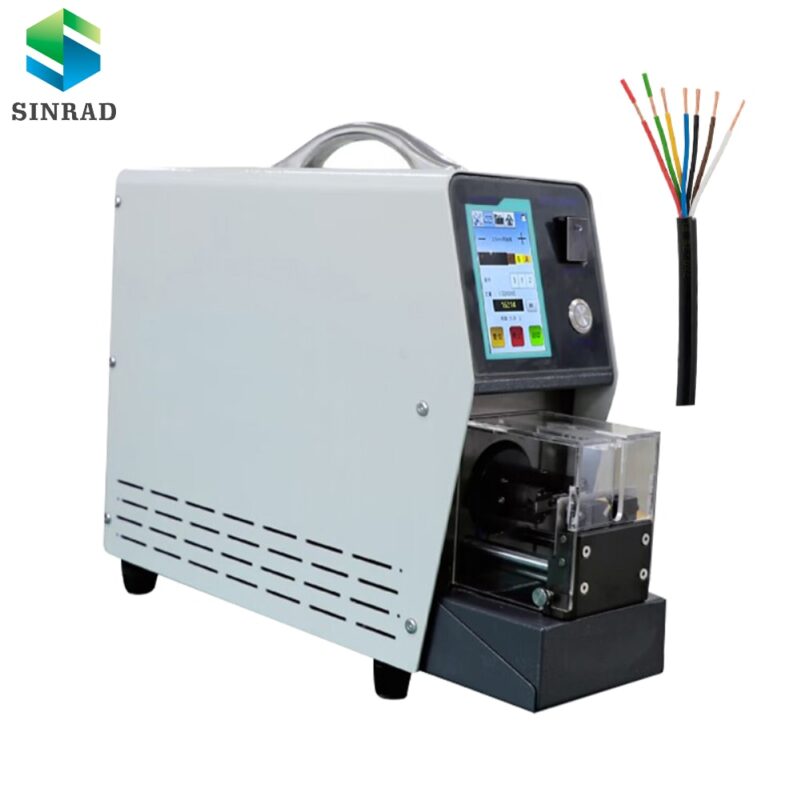

The SR-S86 Servo Coaxial Cable Stripping Machine is a fully automatic, high-precision stripping machine specifically engineered for processing multi-layer coaxial and shielded cables. Its key features include:
- Dedicated Coaxial & Shielded Cable Processing: The machine is designed for the high-precision stripping of multi-layer coaxial and shielded cables, as well as multi-core wiring harnesses.
- High-Precision Stripping: It uses a servo motor for high-speed, rotational stripping and can process up to five layers with a cutting advance of just 0.01mm, ensuring extremely accurate results without damaging the inner cores.

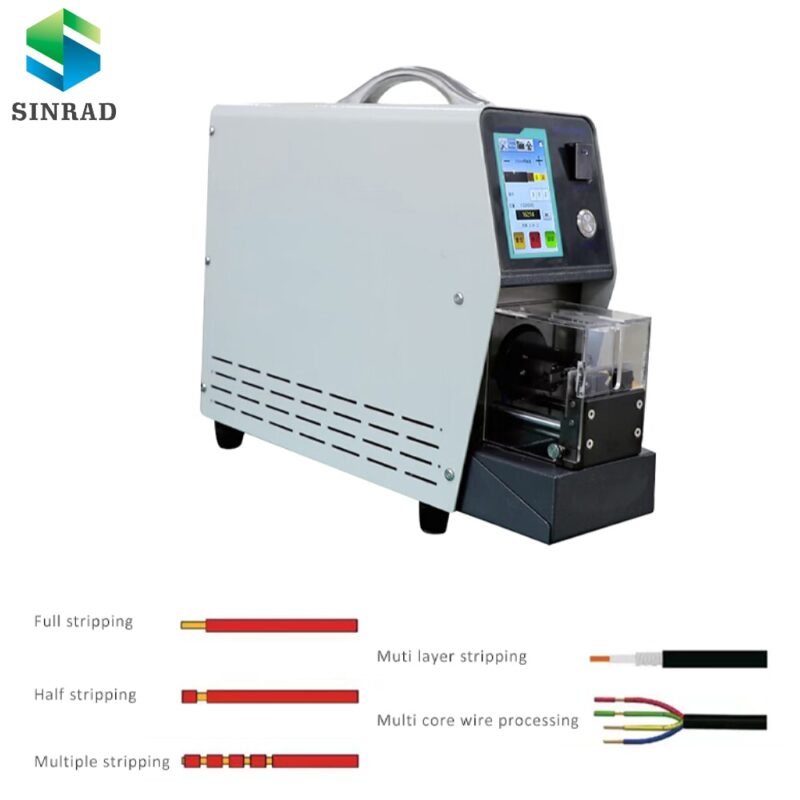

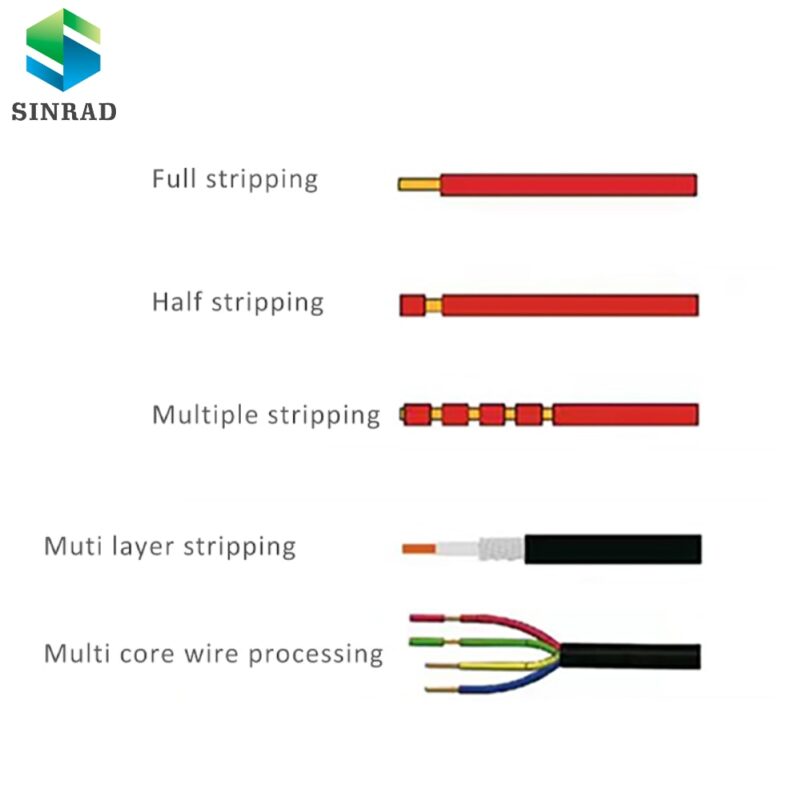

- Versatile Functionality: The machine supports various stripping modes, including full stripping, half stripping, multi-step stripping, and multi-layer stripping, offering great flexibility for different cable types.
|
Operating Mode
|
Semi-automatic
|
|
function
|
Cutting and Stripping Cable
|
|
Applicable wire diameter
|
0-6.5mm
|
|
stripping length
|
0.1-40mm
|
|
Cutting Depth setting unit
|
0.01mm
|
|
Stripping Depth setting unit
|
0.1mm
|
|
Work model
|
manual foot switch or connected Dynamic automatic
|
|
Max. Stripping Layer
|
5 layers
|
|
program saved
|
99 kinds of processing parameter data
|
|
blade
|
2 PCS V shape Imported tungsten steel blade
|
