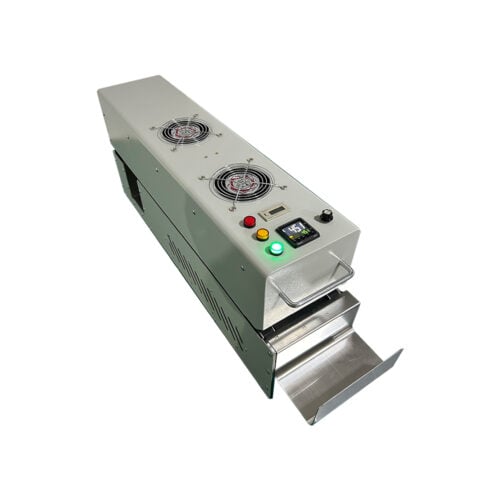

Small Size Electric Heat Shrink Tube Heating Machine

Talk to an Expert

Heat Shrink Tube Heating Machine SR-D01 main parameter

Working voltage AC220V 50HZ
Heater power 1500W
Air outlet nozzle L shape, optional sizes as below.
Temperature Max 450°C
Heating method Resistor wire heating
Heater life 10000h when temperature <350°C
Air blowing volume 335L/min adjustable
Size 35*24*36cm
Weight 12kg
Heating diameter 0-30mm
Heanting length 0-60mm

1. The high-speed fan supplies air, no need compressed air, it can be used as long as the power supply is used, it is light and easy to move;
2. The machine can maintain a constant temperature, which is energy-saving and efficient, and the temperature of the baked product will not drop too much
when air is blown;
3. The heating device uses resistance wire to generate heat, which is difficult to burn out under normal circumstances;
4. The blowing nozzle can be customized in size according to product specifications, and the nozzle can be replaced at will;
5. It is equipped with two control modes: infrared induction and foot control, which can be switched at any time;
6. It has a delay timer function, which can set the heat shrink time and automatic cycle start;
7. It has compact structure, exquisite design and small size, and can be placed on the production line for simultaneous use;
8. The double-layer shell design is sandwiched with high-temperature insulation cotton to prevent the outer surface of the casing from overheating, which not
only makes the working environment comfortable but also reduces energy waste.
