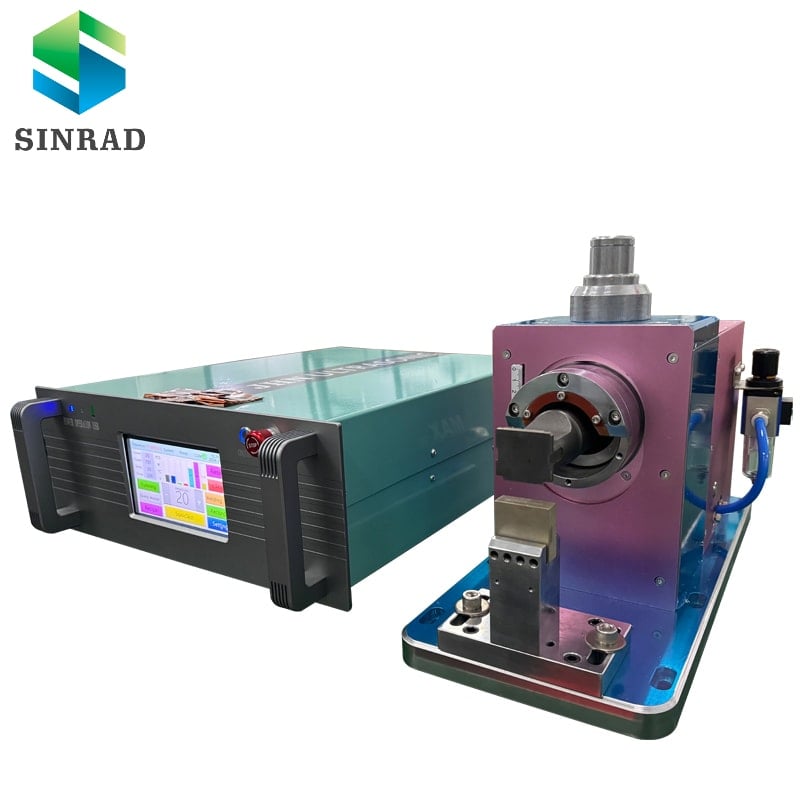

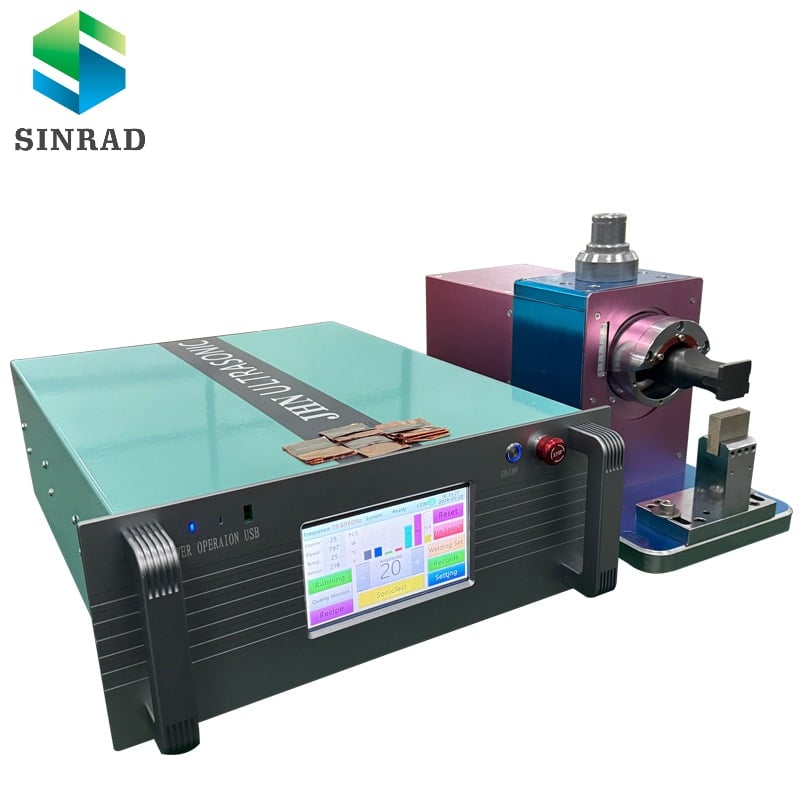

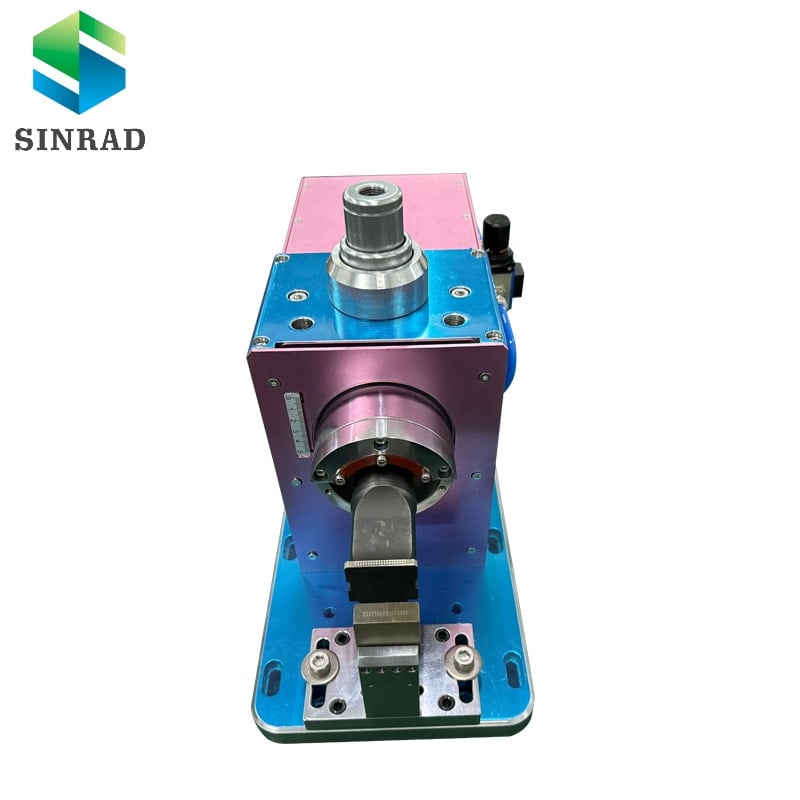

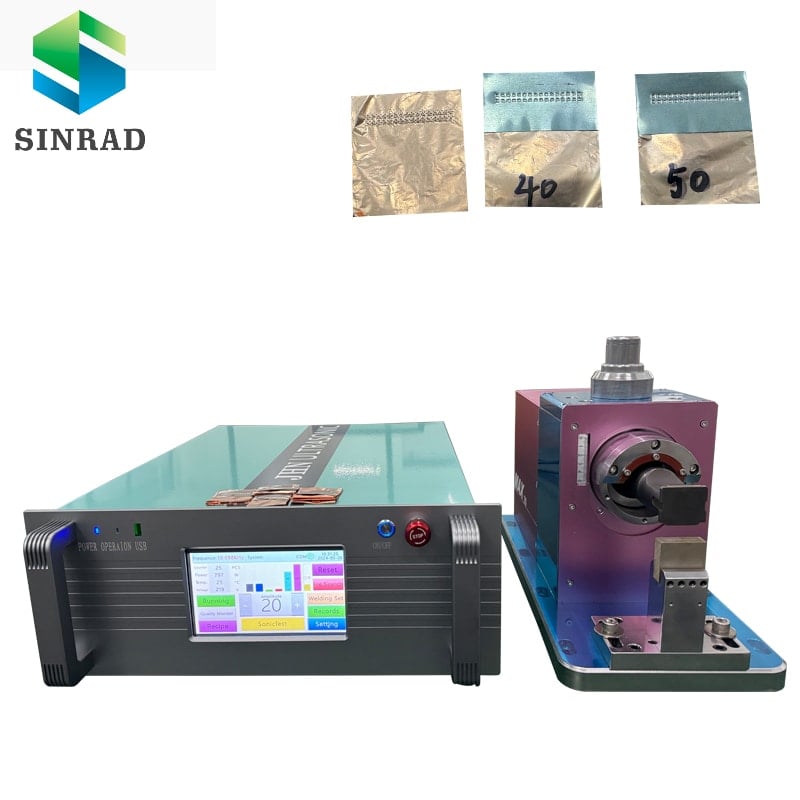

Ultrasonic Metal Spot Welding Machine
|
Material
|
Metal, Copper
|
|
max.input power
|
1000W
|
|
voltage
|
220V
|
|
place of origin
|
China
|
|
brand name
|
Sinrad
|
|
warranty
|
1 Year
|
|
weight (kg)
|
74
|
|
dimensions
|
75cmx65cmx35cm
|
|
usage
|
Terminal, sheet,battery electrode welding
|
|
Working Frequency
|
20 KHz
|
|
Welding Time Range
|
0-9.99s
|
|
Welding Range2
|
0.2mm nickel & 40 layers of copper foil, 4pcs of 0.3mm aluminum sheet
|
|
Working Air Pressure
|
0.4~0.8Mpa
|
|
application
|
Welded lithium battery (power battery)
|
|
Manual or automatic welding
|
Manual(automatic optional
|
|
Welding head
|
can be customized
|
