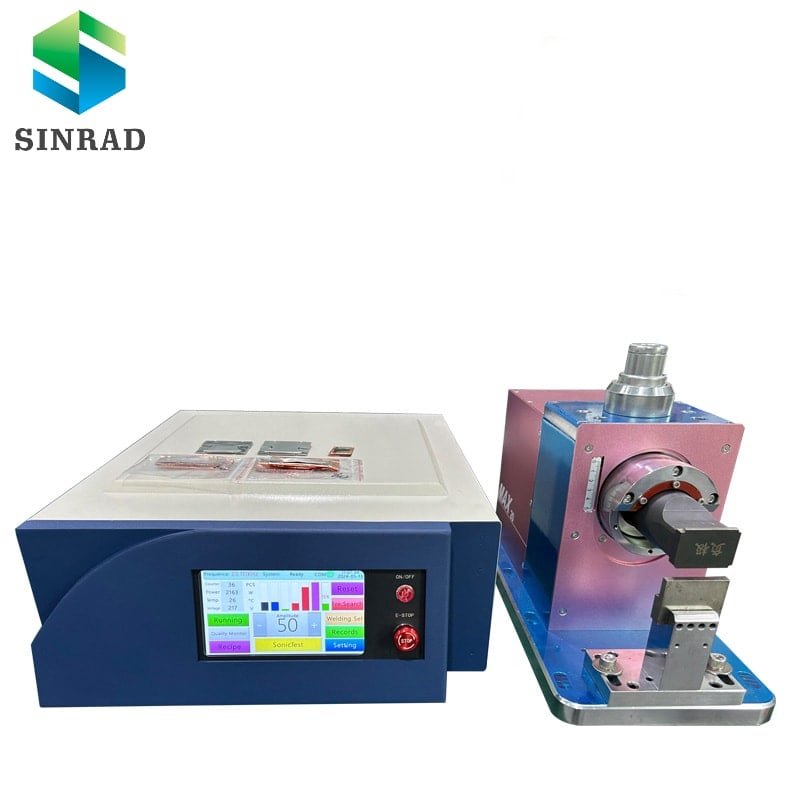

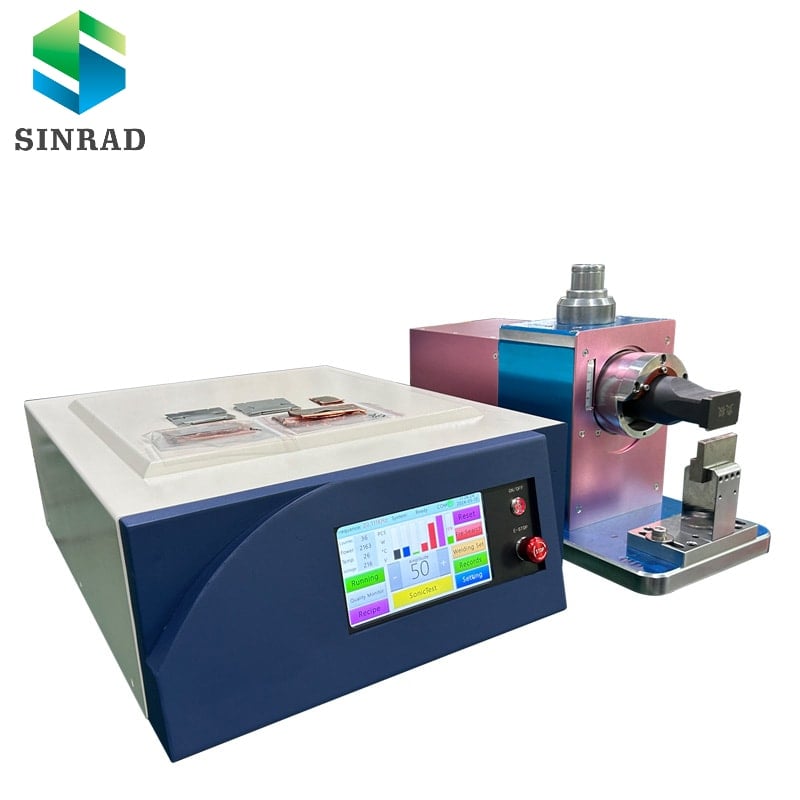

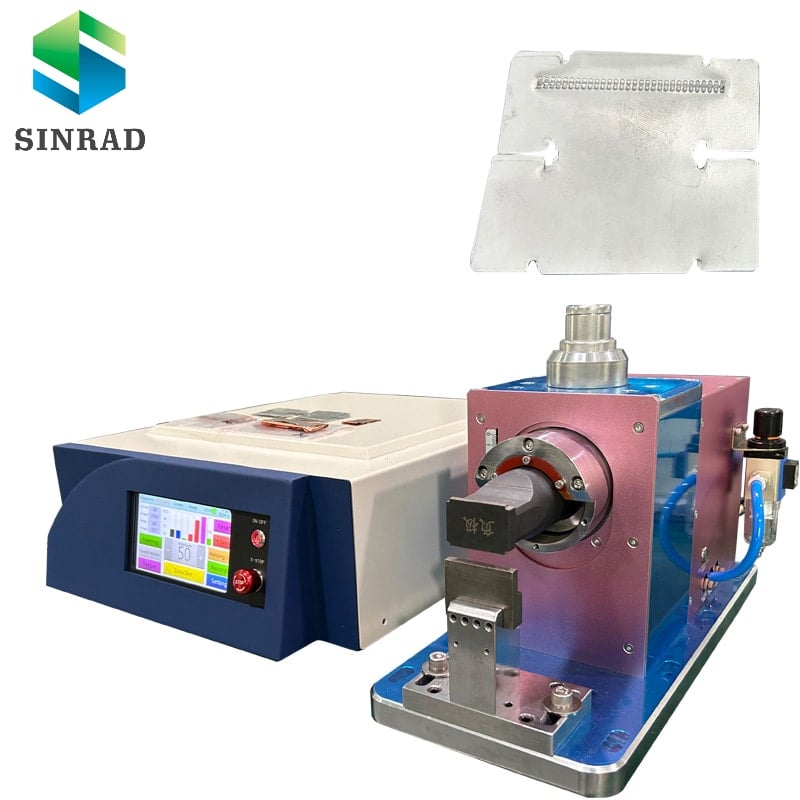

Ultrasonic Metal Welding Machine for Lithium Battery
|
rated capacity
|
5000W
|
|
Material
|
Metal, Copper
|
|
max.input power
|
5000W
|
|
voltage
|
220V
|
|
place of origin
|
China
|
|
brand name
|
Sinrad
|
|
warranty
|
1 Year
|
|
weight (kg)
|
74
|
|
current
|
23A
|
|
rated duty cycle
|
5000w
|
|
dimensions
|
75cmx65cmx35cm
|
|
usage
|
Harness welding
|
|
Maximum Output Power
|
5000W
|
|
Working Frequency
|
20 KHz
|
|
Welding Time Range
|
0.3S-2s
|
|
Welding Range2
|
0.2mm nickel & 80 layers of copper foil, 4pcs of 0.3mm aluminum sheet
|
|
Working Air Pressure
|
min0.65MPa
|
|
application
|

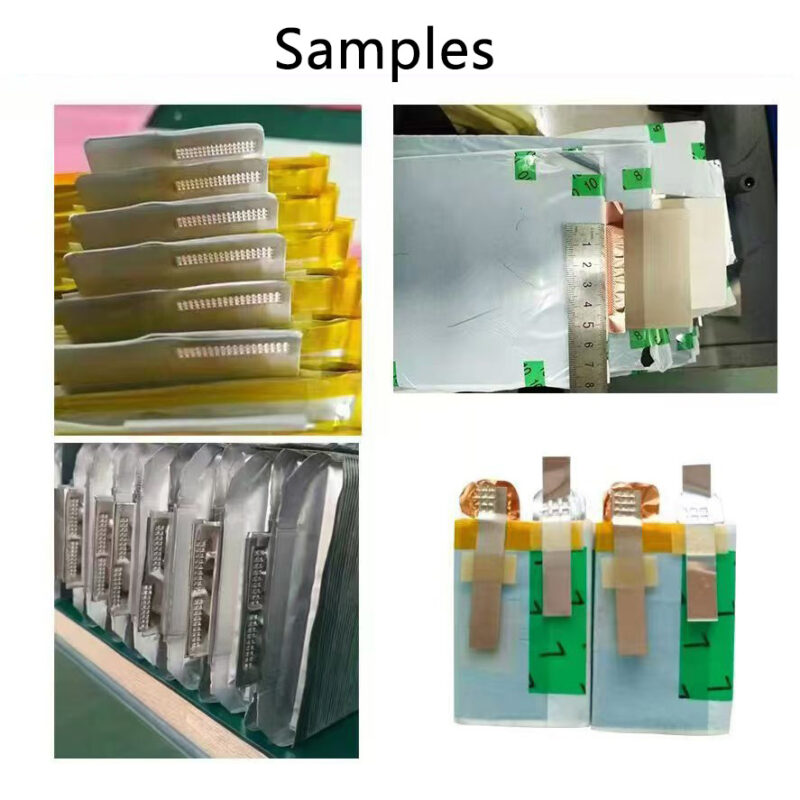

Welded lithium battery (power battery)
|
|
Manual or automatic welding
|
Manual(automatic optional
|
|

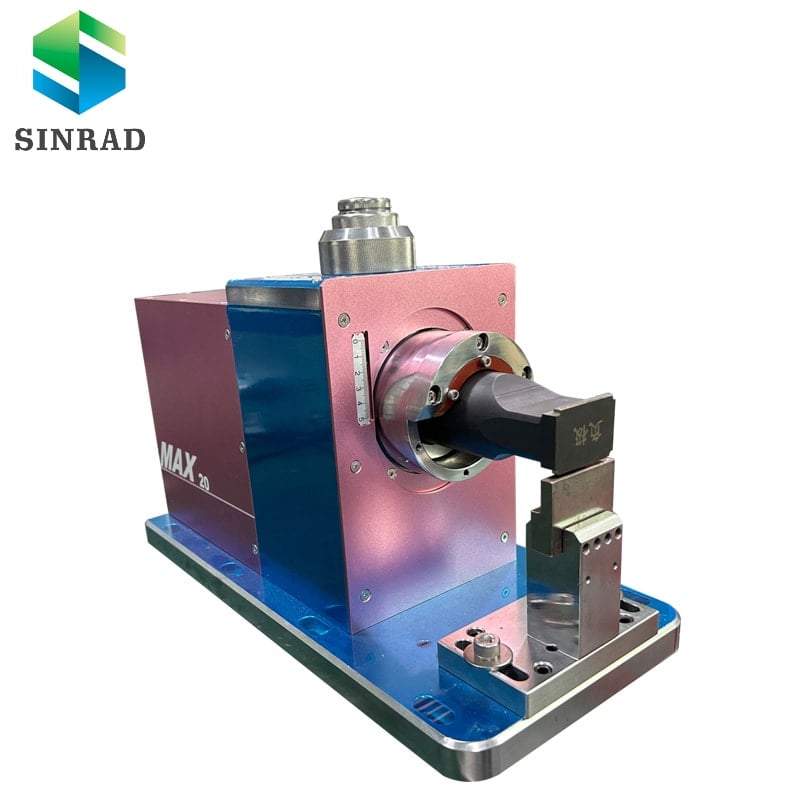

Welding head
|
can be customized
|
Metal Welding Machine for Lithium Batteries
* High-quality ultrasonic transducer with powerful output and excellent stability.
* Automated welding, fast speed, high efficiency, capable of completing a welding operation within 0-9 seconds.
* User-friendly operation, no need to add auxiliary materials.
* Supports multiple welding modes.
* Prevents empty welding and effectively protects the welding head from damage.
* High-definition touch display screen, intuitive data presentation, real-time monitoring, effectively ensuring welding yield.
* Password protection and data storage function.
* Automated welding, fast speed, high efficiency, capable of completing a welding operation within 0-9 seconds.
* User-friendly operation, no need to add auxiliary materials.
* Supports multiple welding modes.
* Prevents empty welding and effectively protects the welding head from damage.
* High-definition touch display screen, intuitive data presentation, real-time monitoring, effectively ensuring welding yield.
* Password protection and data storage function.
