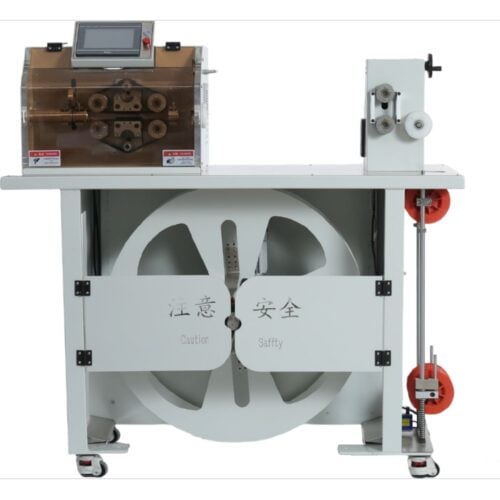

Automatic Pneumatic Rotary Knife Pipe Cutting Machine
|
|
|
Model Name
|
Multifunctional pipe cutting machine type B
|
|
Control System
|
Motion control board plus human-machine interface
|
|
Cutting method
|
Rotating circular knife
|
|
Cutter power
|
1KW
|
|
Feeding motor
|
Servo Motor
|
|
Feeding method
|
Crawler feeding
|
|
Discharging method
|
Conveyor belt output
|
|
Feed method
|
Digital Control Motor
|
|
Discharging method
|
Conveyor belt output
|
|
Feed stroke
|
40mm
|
|
power supply
|
220V 50-60HZ
|
|
Air pressure
|
0.5-0.7Mp
|
|
power
|
2000W
|
|
Cutting diameter
|
ø1- ø45 mm
|
|
cutting tolerance
|
Cutting length ±0.5+L*0.002mm
|
|
speed
|
20-40 pieces/minute
|
|
size
|
1020X530X1300 (excluding protrusions)
|
|
weight
|
About 270Kg
|
Key Features:
- Precision Cutting: Achieves cutting diameters from Ø1 to Ø60mm with high accuracy (±0.5 + L*0.002mm).
- High Efficiency: Capable of cutting 20-40 pieces per minute with digital control and servo motors.
- Advanced Automation: Features motion control system, touchscreen interface, and servo-driven feeding for optimal performance.
