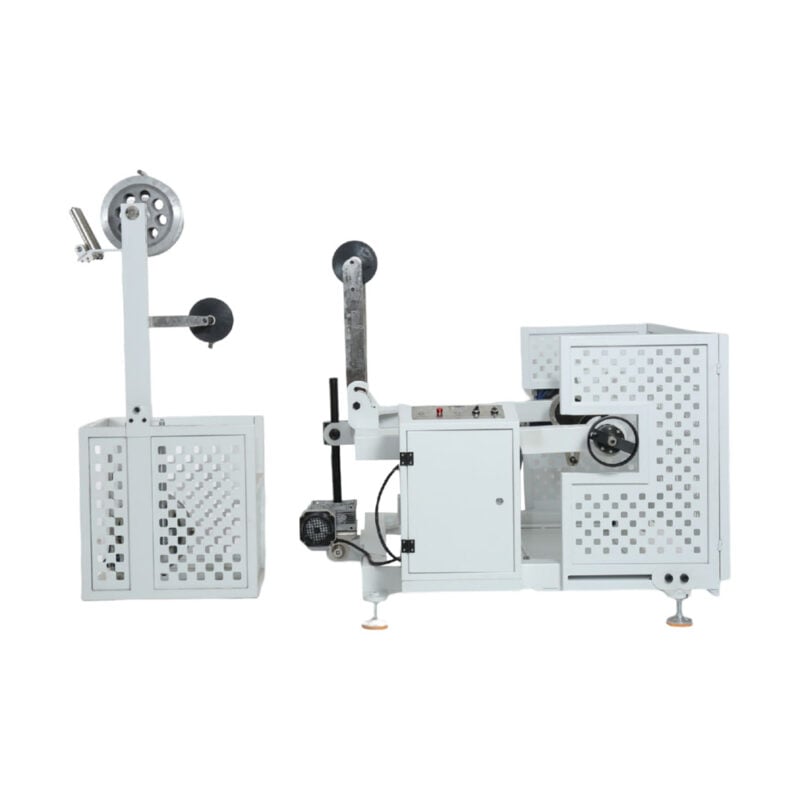

automatic cable feeder SR-F815
|
|
|
Applicability
|
Suitable for 10-185 square wires and cables
|
|
Maximum Load Capacity
|
1500KG
|
|
Wire Drum Outer Diameter
|
800-1500MM
|
|
Wire Drum Inner Diameter
|
53-85MM
|
|
Wire Drum Width
|
450-900MM
|
|
Weight
|
1100KG
|
|
Power Motor Power
|
3KW
|
|
Lifting Motor Power
|
2.2KW
|
|
Unwinding part unfold Dimensions
|
Length 2100, Width 1900, Height 1500
|
|
Pre-feeding part unfold Dimensions
|
Length 750, Width 500, Height 1800
|
Regarding the cable feeder machine, we offer customizable options to suit your specific requirements.
